Product Details Introduction

IC697CMM721 Carrier and MAP Interface Module (15 version)

IC697CMM721 is a single slot Carrier and MAP network interface module from GE Fanuc 90-70 series, designed specifically for PLC access to industrial MAP local area networks. It provides IEEE 802.4 carrier band communication, enabling unified networking and data exchange among multiple vendor devices.

Single slot width design, compatible with all standard VME racks in the 90-70 series.

Integrated digital controller and modem, hardware integrated factory assembly.

Supports IEEE 802.4 Carrier Band physical layer standard.

Compatible with MAP 3.0 manufacturing automation protocol, build a unified factory LAN.

The protocol software is loaded into the module RAM and can be upgraded without hardware modifications.

Independently handle MAP network communication, significantly reducing the computational burden on the main CPU.

Support GEnet Factory LAN architecture and adapt to multi vendor automation equipment interconnection.

Provide PLC and upper computer HMI、 High speed data exchange channels for other PLCs.

Support data collection, remote monitoring, program download, and system diagnostic functions.

Equipped with LEDs for operation, communication, and fault status, facilitating quick on-site troubleshooting.

Support hot plugging, online maintenance does not affect the normal operation of the system.

Industrial grade design, working temperature -40 ℃~+85 ℃, suitable for harsh environments.

Metal casing, strong electromagnetic interference resistance, in compliance with industrial EMC standards.

Can work seamlessly with 90-70 series CPUs, I/O, and communication modules.

Widely used in discrete manufacturing industries such as automotive, electronics, and mechanical manufacturing, MAP networks.

IC697CMM721, with compatibility with MAP protocol, hardware integration, and industrial grade reliability, has become a key module for the 90-70 system to connect to traditional industrial LANs and achieve multi device interconnection.

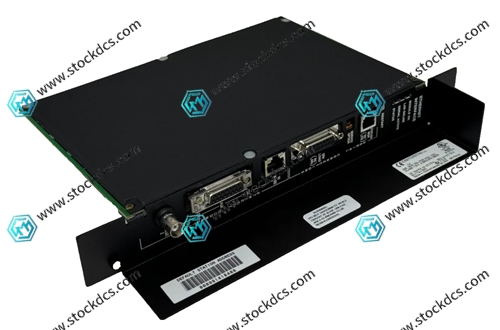

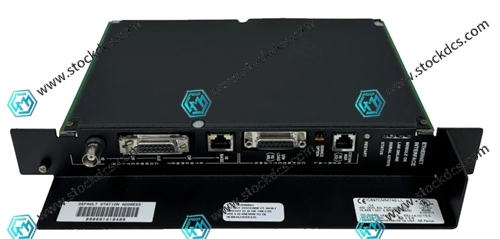

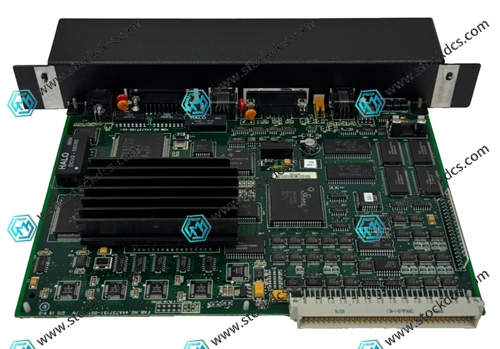

IC697CMM721 Product imag
