IC697BEM741 Bus Controller

Product Details Introduction

IC697BEM741 FIP Bus Controller (15 Key Points)

Specially designed for GE Fanuc 90-70 series PLC, it is a dual bus controller dedicated to FIP fieldbus.

Provide 2 independent FIP bus channels, capable of managing two FIP networks simultaneously.

Supports scanning IC693 FIP remote I/O scanners, IC670 FIP modules, and general FIP devices.

A single module occupies one standard slot on the PLC backplane, compatible with both standard and VME integrator backplanes.

The system can be configured with up to 4 BEM741, with a total of ≤ 31 other bus controllers.

Adopting a synchronous scanning mechanism, I/O devices on the FIP bus are scanned simultaneously, and data is uploaded to the CPU once per cycle.

Full software configuration, complete network and device configuration through programming software such as Logicmaster 90-70.

Support FIP bus master control to achieve centralized management of remote I/O and on-site devices.

Equipped with electrical isolation characteristics, the channel is isolated from the PLC backplane to enhance anti-interference capability.

Industrial grade protection, compliant with Class I, Groups ABCD, Div 2 explosion-proof standards, temperature rating T4A.

Built in fault diagnosis function, quickly locate bus and module abnormalities through LED indicator lights.

Support hot swapping, online replacement does not affect the normal operation of the system.

A single channel can connect a large number of FIP slaves, meeting the needs of large-scale distributed I/O expansion.

Backboard power supply (+5V), no additional on-site power supply required, easy installation and deployment.

Suitable for harsh industrial environments such as chemical, power, metallurgy, etc., stable and reliable.

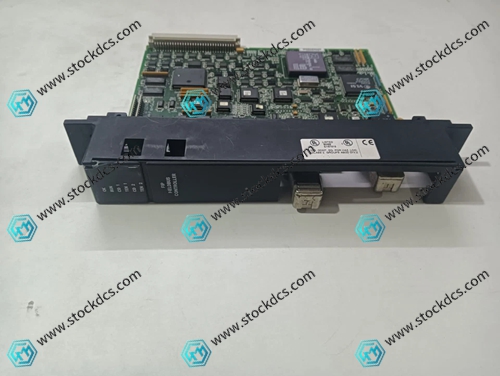

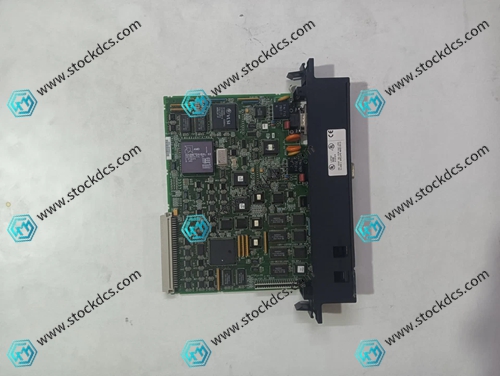

IC697BEM741 Product imag


IC697BEM741 ontroller Module
