TRICONEX AO3082 Communication Module

TRICONEX AO3082 Communication Module

Product Details Introduction

1、 Basic functions

TRICONEX AO3082 is a module used for analog output in the Triconex safety control system, suitable for situations where control signals need to be output to field devices in a 4-20mA current mode. This module is particularly suitable for industrial application environments that require high reliability and high safety levels (such as SIL3), such as refineries, chemical plants, power stations, etc.

2、 Main technical parameters

Number of channels: 8 independent analog output channels

Output signal: 4-20mA current loop

Resolution: 0.01% full scale

Accuracy: ± 0.1% of full scale

Load capacity: Maximum load of 750 ohms

Power supply voltage: 24V DC

Power consumption: approximately 20 watts

Response time: Typically less than 10ms per channel

Isolation protection: Electrical isolation between channels and systems

Working temperature: -40 ° C to+70 ° C

Storage temperature: -55 ° C to+85 ° C

Humidity range: 5% to 95%, no condensation

Support hot plugging: supports online replacement, does not affect system operation

Redundancy support: support TMR architecture, the third mock examination redundant operation

3、 Functional Features

Triple Redundancy Architecture (TMR)

Internally, three independent processing paths are used, and the median algorithm is employed to select the most stable output value, ensuring that the system maintains precise control even in the event of any output path failure.

self-diagnosis

The module can continuously monitor the output status of each channel, such as open circuit, short circuit, overload, etc., and report to the system for processing.

Strong channel independence

Each output channel is independently designed, with no interference between channels and strong fault isolation capability.

Support online maintenance of the system

Supports online module plugging and unplugging, facilitating maintenance and replacement without the need for downtime.

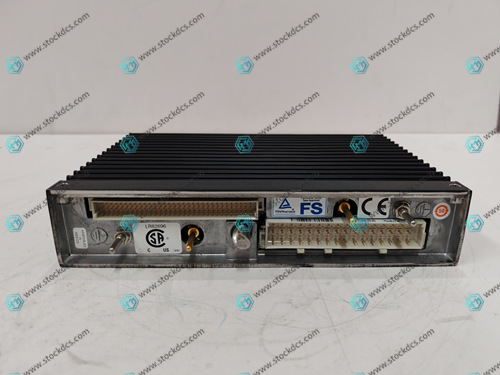

Product imag
