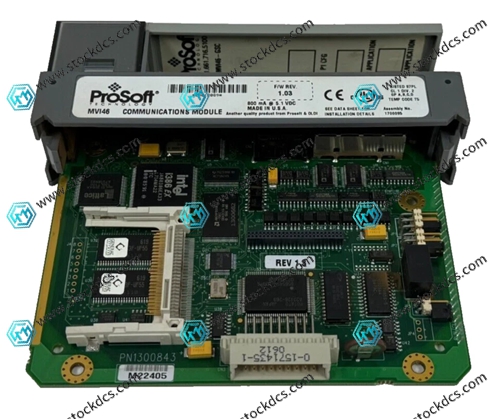

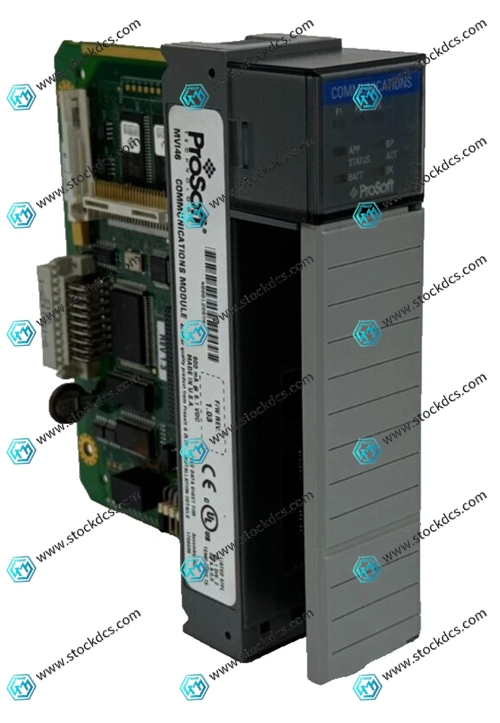

MVI46-GSC Universal Serial Communication Module

MVI46-GSC is a universal ASCII serial communication module designed by ProSoft specifically for Rockwell SLC 500 series PLCs. It is used to expand independent serial communication ports for SLC systems and interface with various ASCII protocol devices.

Core Features

Single slot installation, compatible with SLC 500 local/expansion rack, does not occupy PLC native serial port

Provide 2 independent programmable serial ports (PRT1/PRT2), supporting RS-232/422/485 electrical interfaces

The baud rate range is 110-115200bps, with 5-8 data bits and configurable parity/stop bits

Single port supports up to 4096 character ASCII string transmission and reception, suitable for long message devices

Support multiple message termination modes: stream mode, termination character, timeout, packet length limit

Support hardware (RTS/CTS, DTR/DSR) and software (XON/XOFF) flow control

Independent communication processing, exchanging data with PLC through SLC backplane M0/M1 files without occupying main processor resources

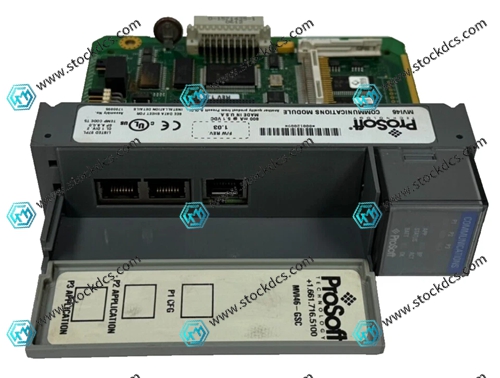

Built in RJ45 RS-232 configuration port (CFG) for local parameter setting and diagnosis

Multi state LED indicator lights: module status, backplane communication, serial port activity, and fault status are clear at a glance

Industrial grade design, working temperature 0-60 ℃, strong anti-interference, suitable for harsh industrial sites

Backplane power consumption 800mA @ 5VDC, low power consumption, compatible with SLC 5/02 and above processors

Provide configuration software and ladder logic examples to simplify deployment and debugging

Supports master/slave mode, can actively initiate or passively respond to communication, adapted to bidirectional data interaction scenarios

Support custom message formats, compatible with various non-standard ASCII devices

Support data forwarding and achieve transparent communication between PLC and multiple serial devices

Typical Applications

SLC PLC is networked with ASCII devices such as barcode scanners, weighing instruments, RFID readers, etc

Connect old serial protocol devices to achieve data collection and remote monitoring

Docking with printers, character terminals, and text displays to achieve data output and operational interaction

Non standard equipment modification, achieving communication between PLC and specialized equipment through serial links

Multi site distributed system, implementing ASCII data sharing through RS-485 bus

Remote control and status feedback of serial devices such as sensors and actuators in industrial sites

This module provides flexible and independent serial communication expansion capabilities for SLC systems, quickly connecting PLC with various ASCII serial devices, and meeting the networking and data exchange needs of non-standard equipment in industrial sites.
