NI PXIE-5160 oscilloscope module

NI PXIE-5160 oscilloscope module

Product Details Introduction

NI PXIe-5160 is a high-performance PXI Express oscilloscope module launched by National Instruments, widely used in fields that require high-speed signal acquisition and analysis.

Main technical specifications:

Number of channels: Two channel and four channel models are available, and all channels can be sampled simultaneously.

Analog bandwidth: up to 500 MHz.

Sampling rate: up to 2.5 GS/s.

Vertical resolution: 10 bits.

Input type: Reference single ended input using BNC connector.

Coupling method: Supports alternating current (AC) or direct current (DC) coupling.

Input impedance: The software can select 50 Ω or 1 M Ω, with typical values of 50 Ω± 1.50% and 1 M Ω± 0.75%, respectively.

Input capacitance: The typical value is 15 pF ± 0.8 pF.

Onboard memory: optional 64 MB or 2 GB.

Application areas:

R&D testing: During the new product development phase, it is used to test and verify whether the performance of electronic devices meets design specifications.

Manufacturing and Quality Control: Monitor product performance on the production line to ensure that the product meets quality standards during the manufacturing process.

Communication industry: Analyze and test signal integrity in communication equipment, including wireless signals and high-speed data transmission.

Automotive Electronics: Testing and validating electronic control units, sensors, and communication systems in automobiles.

The high bandwidth and sampling rate of the PXIe-5160 oscilloscope module make it highly suitable for applications that require precise signal measurement and analysis.

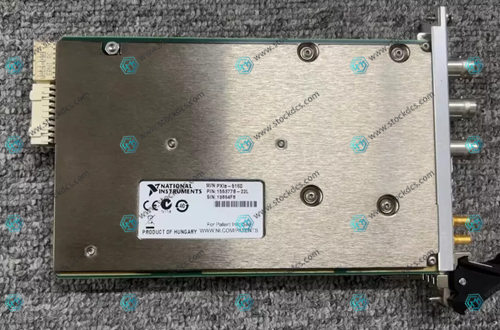

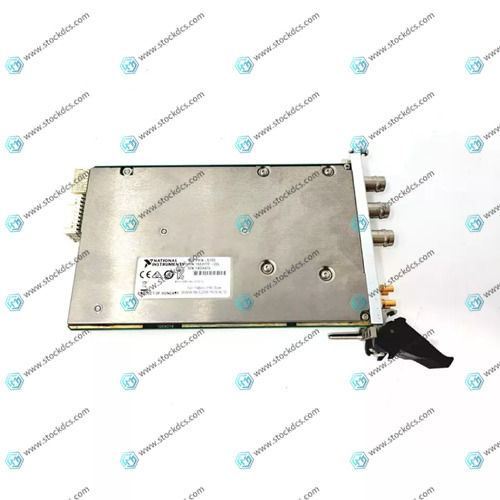

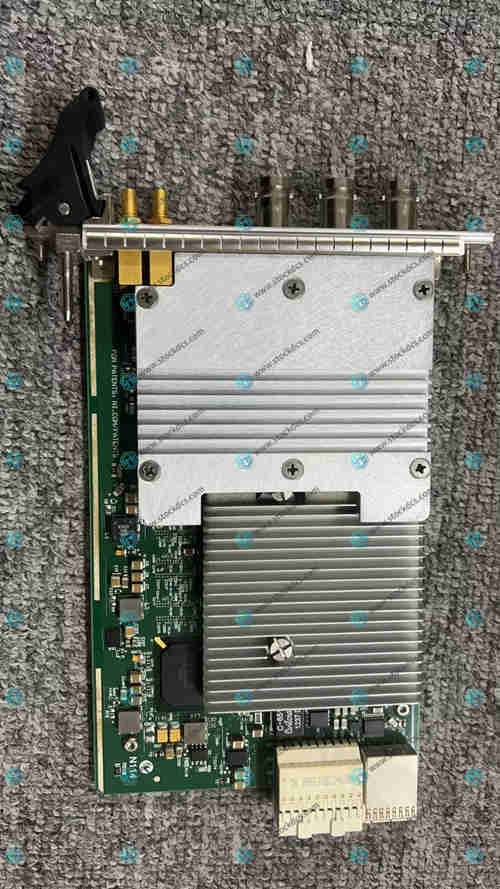

Product imag
