Product Details Introduction

SSI232.1 (part number: 029.365083) is an interface module produced by Emerson, designed to enable communication with encoders and other devices in industrial automation systems. This module is typically used to receive synchronous serial interface (SSI) signals from rotary encoders to obtain parameters such as position and velocity.

Main features:

Multi channel input: Provides multiple input channels that can simultaneously receive multiple SSI signal sources, improving the flexibility and scalability of the system.

High data transmission rate: Supports high-speed data transmission to ensure real-time acquisition of encoder data and meet high-performance application requirements.

Flexible configuration options: Users can configure data formats, transmission rates, and other parameters according to their actual needs to adapt to different application scenarios.

Reliable industrial design: Adopting robust industrial grade design to ensure stable operation in harsh environments and meet the needs of industrial sites.

Application areas:

Position and speed monitoring: Used in conjunction with a rotary encoder to monitor real-time position information and speed of motors or mechanical components.

Automated control system: In automated production lines, encoder data is obtained to achieve precise control and feedback.

Technical specifications:

Input type: Supports SSI protocol encoder input, compatible with multiple encoder models.

Data format: Supports multiple data format configurations to meet the data transmission requirements of different encoders.

Power requirements: Usually powered by a 24V DC power supply, please refer to the product manual for details.

Working temperature range: Suitable for ambient temperatures ranging from -20 ° C to+60 ° C, ensuring stable operation in various industrial environments.

Installation method: DIN rail installation facilitates installation and maintenance in the control cabinet.

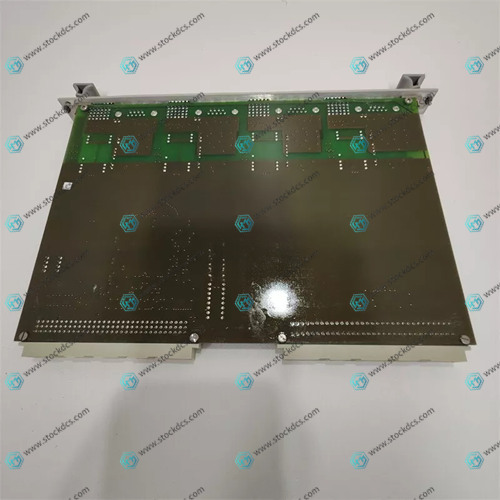

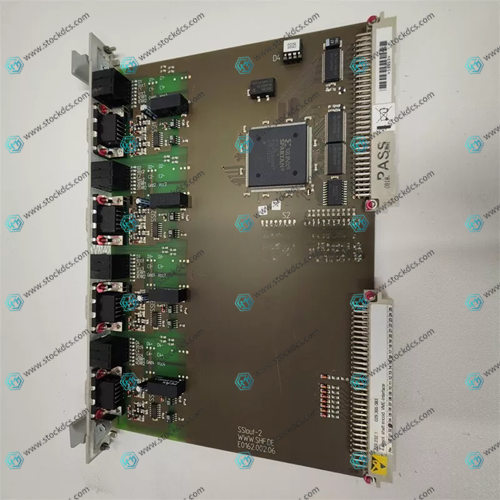

Product imag
