WOODWARD PROTECH-GII 8237-2601 Overspeed Protection Equipment

WOODWARD PROTECH-GII 8237-2601 Overspeed Protection Equipment

Product Details Introduction

Woodward's PROTECH-GII (model: 8237-2601) is an overspeed protection device designed to detect turbine overspeed or over acceleration events and safely shut down the turbine when necessary to prevent damage or safety accidents.

Main features:

High response speed: The device has a response time of 12 milliseconds and is suitable for various turbine types and sizes with a speed range from 0.5 to 32000 rpm.

Redundant design: provides two configuration options:

Dual redundant trip relay output: adopting a 2-out-of-3 voting architecture to ensure high reliability.

Three independent non voting trip relay outputs: each relay has an independent alarm function.

Integration and Communication: Equipped with 4-20 mA speed output and Modbus communication interface for easy integration with other control systems.

Installation options: Two installation methods are available: door panel installation and cabin wall installation, to meet different installation needs.

Power configuration: Supports high voltage/high voltage (HV/HV) or high voltage/low voltage (HV/LV) power input configurations, with high power selectivity.

Application areas:

PROTECH-GII is suitable for overspeed protection of steam, gas, and hydraulic turbines, and is widely used in power plants and industrial facilities to ensure safe shutdown of turbines in the event of overspeed or over acceleration.

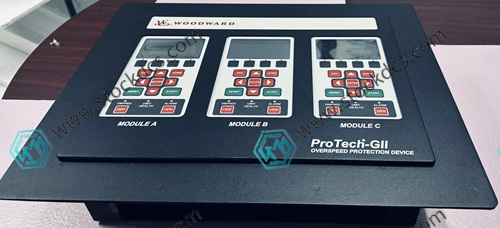

Product imag
