NI PXIE-5171 Controller Module

NI PXIE-5171 Controller Module

Product Details Introduction

NI PXIe-5171 is a high-performance, reconfigurable PXI digital oscilloscope controller module produced by National Instruments in the United States. It aims to collect and analyze analog signals in both time and frequency domains, suitable for application scenarios that require high bandwidth and multi-channel synchronous sampling.

Main features:

High sampling rate and bandwidth: Provides a sampling rate of up to 12.5 GS/s and an analog bandwidth of 5 GHz to meet high-speed signal capture requirements.

Multi channel synchronization: Supports simultaneous sampling of up to 8 channels, suitable for applications with high channel counts and mixed signals.

Programmable FPGA: Equipped with Kintex-7 410T FPGA, users can customize acquisition, triggering, signal processing, and data flow functions.

Large capacity onboard memory: equipped with large capacity memory, supporting long-term data collection.

Application areas:

Universal measurement: suitable for various occasions that require high-precision signal analysis.

Multi channel applications: meet the needs of high channel count and mixed signal applications.

Synchronous measurement: Multiple oscilloscopes can be accurately synchronized with other instruments to perform complex measurement tasks.

Custom function: Implement specific testing requirements and functional extensions through programmable FPGA.

Overall, the NI PXIe-5171 module is suitable for high-speed, high-precision signal acquisition and analysis tasks due to its outstanding performance and flexibility.

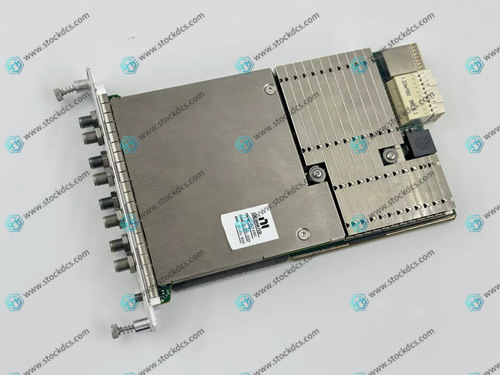

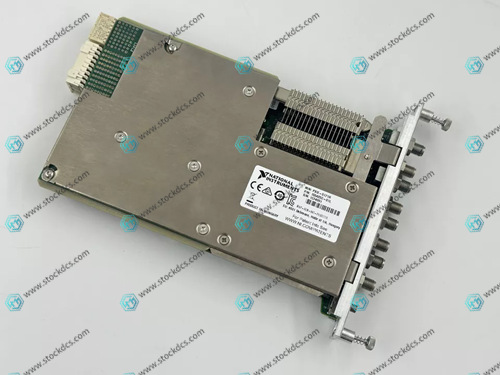

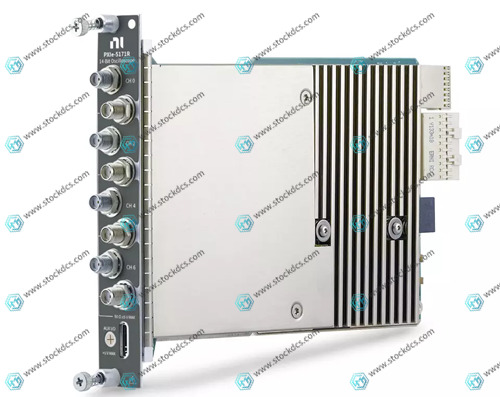

Product imag
