PEPPERL+FUCHS 2082 Safety Barrier Module

PEPPERL+FUCHS 2082 Safety Barrier Module

Product Details Introduction

The PEPPERL+FUCHS 2082 safety barrier module is a highly reliable industrial safety equipment designed specifically for signal transmission in explosion-proof environments. This module can provide signal isolation function to ensure the safe operation of electrical equipment and control systems in hazardous environments. It isolates low voltage and low power signals from high voltage signals in hazardous areas, effectively preventing explosions or fire accidents caused by sparks, short circuits, etc.

The PEPPERL+FUCHS 2082 module supports isolation and protection of 4-20mA current signals, digital signals, and other control signals through efficient safety barrier design. This module is widely used in industries such as petroleum, natural gas, chemical, and power to ensure the safe operation of equipment in flammable and explosive areas.

Main technical parameters

Project parameter description

Module Type: Safety Barrier Module

Input signal 4-20mA, voltage signal, digital signal

Output signal isolated signal output

Rated voltage 24V DC

Maximum input current 20 mA

Power supply voltage range 24V DC ± 20%

The maximum isolation voltage is 250V

Working temperature range -20 ° C to+60 ° C

Environmental adaptability: dustproof and waterproof, compliant with IP20 or higher levels

Certification standards ATEX, IECEx explosion-proof certification

Dimensions 22.5mm x 114mm x 100mm (standard DIN rail mounting dimensions)

Connection method: Screw terminal connection

Product Features

Signal isolation protection: effectively isolates low voltage signals from high voltage signals to prevent the generation of electrical sparks or explosions

Wide compatibility: Supports multiple signal types, including analog signals (such as 4-20mA) and digital signals, suitable for various industrial application scenarios

Explosion proof certification: compliant with explosion-proof standards such as ATEX and IECEx, suitable for hazardous gas and dust environments

High reliability: using industrial grade materials and advanced technology to ensure long-term stable operation and enhance system safety

Compact design: DIN rail installation for easy installation and wiring in distribution and control cabinets

Environmental adaptability: Suitable for harsh industrial environments, with dust-proof and waterproof functions, ensuring stable operation even under extreme conditions

LED status indicator: provides clear status indicator lights, real-time monitoring of equipment operation status, facilitating troubleshooting and maintenance

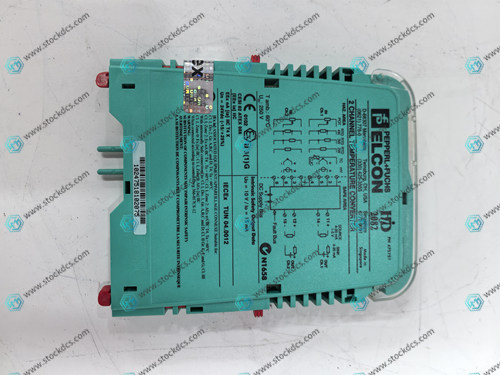

Product imag
