NI PXIE-5122 779967-03 High speed Digitizer Card

NI PXIE-5122 779967-03 High speed Digitizer Card

Product Details Introduction

NI PXIe-5122 (part number 779967-03) is a high-performance PXI Express oscilloscope module produced by National Instruments. It provides two channels, with an analog bandwidth of 100 MHz, a sampling rate of up to 100 MS/s, and a resolution of 14 bits. This device is suitable for time-domain and frequency-domain applications that require high-resolution, low-noise measurements.

Main features:

High resolution and low noise: Provides up to 14 bit resolution and low noise performance, ensuring accurate signal capture and analysis.

Flexible input configuration: supports multiple coupling, impedance, and voltage range settings to meet different application requirements.

Multiple triggering modes: including edge, digital, immediate, and software triggering modes, enhancing triggering flexibility.

Large capacity onboard memory: equipped with up to 512 MB of onboard memory, supporting long-term data acquisition.

Advanced synchronization and data streaming functions: Supports PXI synchronization and data streaming functions, suitable for multi-channel and mixed signal applications.

Application areas:

Radar and Ultrasonic Testing: Suitable for applications that require short trigger reload times, such as radar and ultrasonic testing.

Event recognition: performs well in applications that require capturing and analyzing rapid events.

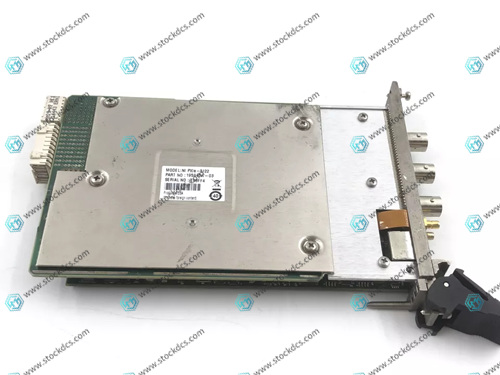

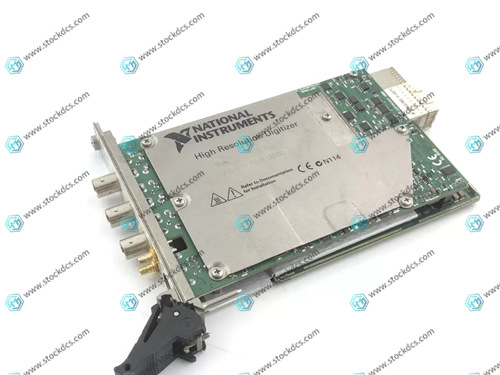

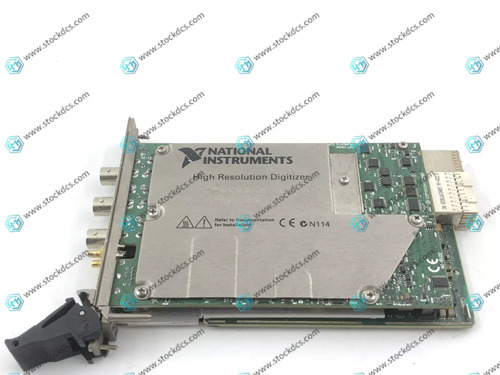

Product imag
