IC697BEM761 Bus Controller Card

IC697BEM761 Bus Controller Card

Product Details Introduction

IC697BEM761 I/O bus interface controller (15 key points)

Specially designed for GE Fanuc 90-70 series PLC, it is an intelligent bridging module for IC600 and IC697 I/O systems.

Core function: Implement high-speed data exchange between IC600 CPU bus and IC697 I/O rack, compatible with hybrid I/O architecture.

A single module occupies one standard slot on the 90-70 backplane, compatible with both standard and VME integrator backplanes.

Using dual 37 pin connectors, it can directly connect to the IC600 I/O bus without the need for additional adapter components.

A single rack can support up to 256 I/O points (9-slot rack), while a 5-slot rack can support 128 points, allowing for flexible adaptation to different scales.

System level expansion: Up to 8 IC697 racks can be mounted, with a total of 2000 I/O points; Complementary addressing can be extended to 4000 points.

Intelligent data management: Automatically read and write data from all I/O modules in the rack, and periodically synchronize and upload it to the IC600 CPU.

Running requires CPU to allocate a minimum of 8K register space to ensure data caching and real-time exchange.

Support mixed I/O coexistence: The same I/O chain can simultaneously access three types of I/O modules: IC600, IC697, and IC660.

Backboard+5V power supply, current requirement of 1.3A, no need for additional on-site power supply, simple deployment.

Built in hardware level electrical isolation, bus and I/O side isolation, strong resistance to industrial electromagnetic interference.

Full software configuration, complete rack address and I/O mapping configuration through Logicmaster 90-70.

Equipped with LED status indicator, it displays real-time operation, communication, and fault status, providing intuitive diagnosis.

Support hot plugging, online maintenance and replacement without interrupting system operation, improving availability.

Industrial grade wide temperature range (-40 ℃~+85 ℃), anti vibration design, suitable for harsh scenarios such as metallurgy, power, and chemical industry.

IC697BEM761 is a key interface for the integration of 90-70 and IC600 systems, with high-density, high reliability, and easy scalability as its core advantages. It is an ideal choice for upgrading old systems and deploying hybrid architectures.

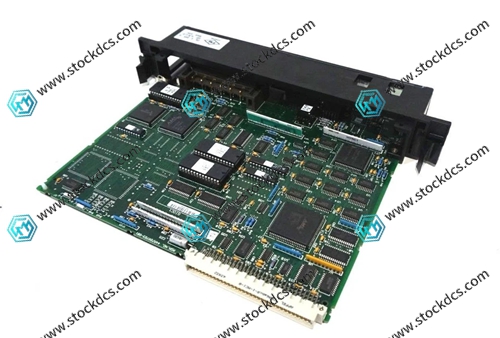

IC697BEM761 Product imag

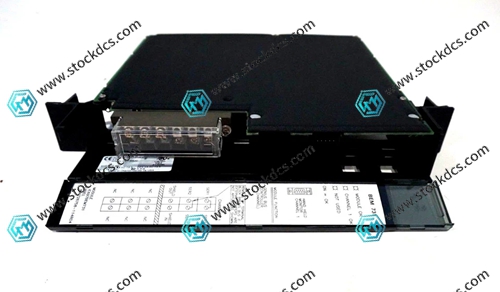

IC697BEM761  ontroller Module
