P0922VU FBM215 isolated communication output module (HART output)

Belonging to Foxboro I/A Series/Evo DCS system, it is an 8-channel isolated HART communication analog output module (model P0922VU).

Each channel can output standard 4-20mA analog signals, or 4-20mA with added HART FSK digital signals, compatible with ordinary instruments and HART intelligent actuators.

Each channel is equipped with an independent FSK modem, which enables bidirectional digital communication with HART devices. A single channel can send and receive 2 digital messages per second.

Adopting an 8-channel fully isolated design, the channels are completely electrically isolated from each other and from the system/ground, with anti-interference, anti ground circulation, and signal independence guaranteed.

Supports HART universal/common/device specific commands, allowing remote configuration, calibration, reading of diagnostic and multivariate data.

Each channel provides isolated power supply, simplifying the wiring of two-wire/four wire HART actuators.

Support redundant 2Mbps fieldbus communication, A/B dual redundancy, automatic switching in case of one fault, ensuring stable control.

Equipped with LED status indicator lights, it intuitively displays the operation, communication, and channel output status of the module, facilitating quick diagnosis.

Support online hot plugging, maintenance does not require power outage or disconnection, and does not affect the continuous operation of the system.

Industrial grade wide temperature design, working temperature range of * * -40 ℃~+85 ℃ * *, meeting the strict industrial environment standards of G3.

Modular structure, DIN rail installation, equipped with dedicated terminal components, easy deployment and wiring.

Seamless integration with Foxboro DCS, supporting HART device management, online diagnosis, and status monitoring.

HART intelligent valve positioner, actuator control, and process regulation scenarios suitable for industries such as petrochemicals, power, metallurgy, and water treatment.

This module has the core advantages of HART bidirectional communication, fully isolated channels, high reliability, and easy maintenance. It is a key component for industrial DCS systems to connect to HART intelligent execution devices and achieve the integration of analog control and digital management.

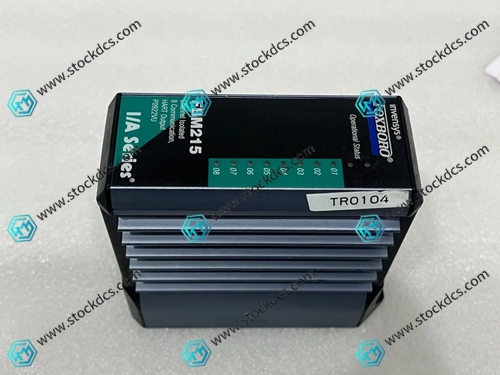

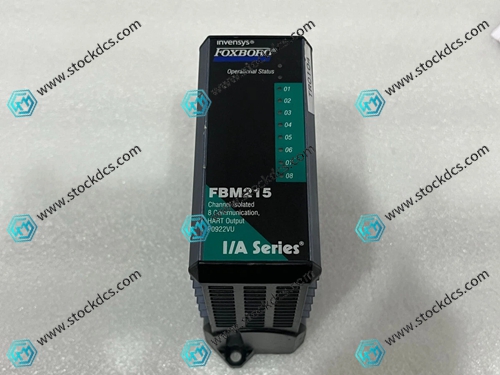

P0922VU FBM215 Product imag
