845H-NXC777303 Encoder

845H-NXC777303 Encoder

Product Details Introduction

845H-NXC777303 adopts an incremental optical detection design, supporting A/B dual channels and zero position indexing, with a signal phase difference of 90 °± 22 ° and precise positioning feedback

The resolution can reach up to 5000PPR, with pulse symmetry of 50% ± 10%, meeting the requirements of medium to high precision motion control

The power supply voltage is compatible with a wide range of 8-24VDC, with a maximum current of 150mA, and strong adaptability to industrial power supply scenarios

845H-NXC777303 signal response frequency reaches 210kHz, suitable for up to 6000rpm speed, high-speed tracking without delay

Protection level up to IP66 (NEMA 4/13), dustproof, waterproof, oil proof, suitable for harsh industrial site environments

Output supports multiple modes such as PNP current source and NPN current sink, with a driving capability of 20mA and compatibility with multiple control systems

845H-NXC777303 shaft diameter can be selected in specifications such as 6mm/10mm, with a radial load of 178N and an axial load of 89N, providing strong mechanical load-bearing capacity

Working temperature range -25~90 ℃ (storage), 0~60 ℃ (operation), wide temperature adaptability to complex working conditions in multiple regions

The impact resistance reaches 50g (11ms continuous), the vibration resistance is 20g (4-2000Hz), and the operation is stable in complex environments

845H-NXC777303 has a moment of inertia of only 15gcm ², a starting torque of 2.5Ncm, and operates without additional load

Compatible with Rockwell PLC and servo drive systems, with strong anti-interference ability in signal transmission and reliable industrial networking

Adopting shielded cable design, requiring standardized grounding, complying with international electrical standards, and ensuring distortion free signal transmission

845H-NXC777303 weighs approximately 0.91kg and is designed for flange installation, suitable for various equipment installation layouts

The working humidity can withstand 98% non condensing environment, and the performance does not deteriorate under humid conditions, with outstanding stability

Compatible with machine tools, conveying equipment, automated production lines, and other scenarios, seamlessly compatible with Rockwell Automation systems, with low integration costs

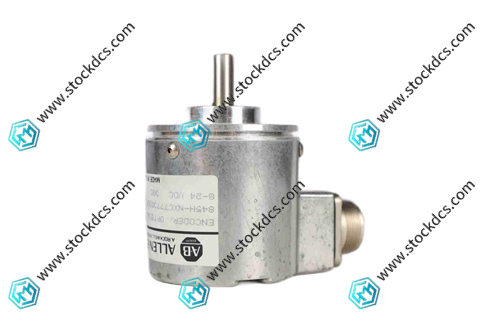

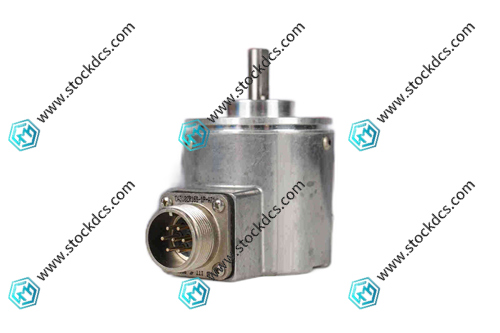

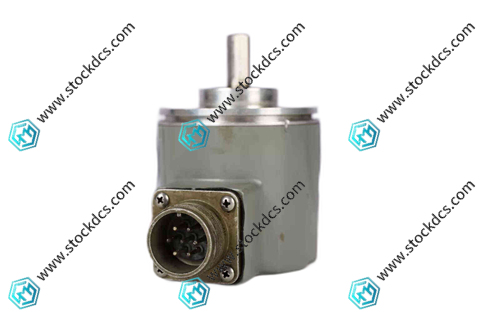

845H-NXC777303  Product imag
