Product Details Introduction

INDRAMAT MDD112C-N-030-N5M-130GB0 is a German Bosch Rexroth MDD series synchronous servo motor designed specifically for high-end industrial precision motion control scenarios.

The rated static torque reaches 38.0Nm, with strong and stable power output, suitable for the continuous operation needs of medium and heavy-duty equipment.

Rated speed of 3000min ⁻¹, wide speed range, can achieve dual adaptation of low-speed smooth operation and high-speed dynamic response.

Equipped with a rotary transformer feedback (RSF) encoder, it has high position detection accuracy and supports relative positioning mode to ensure control accuracy.

The protection level reaches IP65, with excellent dustproof and waterproof performance, and can withstand complex and harsh environments such as dust and humidity in industrial sites.

The motor size specification is 112 series, with a center positioning diameter of 130mm. It has a compact structure and high power density, saving installation space.

Adopting a radial cooling design, it has excellent heat dissipation efficiency and low temperature rise during continuous operation, meeting the requirements of long-term high-intensity operations.

The output shaft is equipped with a shaft sealing structure, which has strong transmission stability, effectively prevents impurities from entering, and extends the service life of the shaft system.

INDRAMAT MDD112C-N-030-N5M-130GB0 is compatible with three-phase AC power supply and is perfectly compatible with digital drive controllers of the same brand, with excellent system integration.

Optimization design of rotor moment of inertia, rapid dynamic response, efficient acceleration and deceleration process, and reduced waiting time for equipment operation.

The insulation level meets high industrial standards, with excellent high-temperature resistance and outstanding long-term operational stability and electrical safety.

Support B-side connection direction design, clear definition of wiring terminals, convenient and standardized installation and wiring, suitable for industrial equipment layout requirements.

Equipped with multiple protection functions such as overcurrent, overvoltage, and overheating, it comprehensively safeguards the safe operation of motors and control systems.

The mean time between failures (MTBF) performance is excellent, and the core components are made of high-quality materials, reducing long-term maintenance costs and downtime losses.

Widely used in high-precision automation scenarios such as CNC machine tools, robot workstations, and lifting equipment, especially suitable for industrial equipment with high requirements for torque and positioning accuracy.

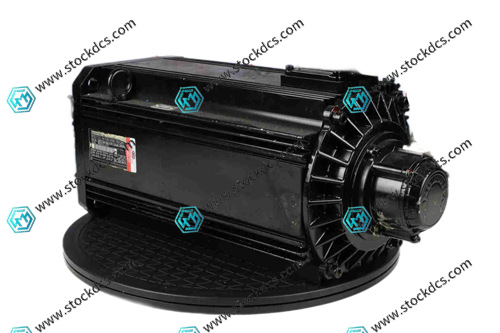

MDD112C-N-030-N5M-130GB0  Product imag
