KPS-600/20-REL servo drive controller

KPS-600/20-REL servo drive controller

Product Details Introduction

KPS-600/20-REL is an integrated servo drive power module designed by KUKA specifically for KRC2 control cabinets. Its core functions include three-phase AC rectification, DC bus power supply, servo brake control, and safety circuit coupling. It is the core power source and safety pivot of KRC2 system servo drive and is used in conjunction with KSD series servo drives.

Product features (15 items)

Core function: The three-phase AC input is rectified into a stable DC bus, which supplies power to the KSD servo drive and integrates short-circuit braking and safety monitoring.

Model positioning: REL version comes standard with short-circuit braking relay and watchdog monitoring, which automatically triggers short-circuit braking in case of malfunction to ensure equipment safety.

Input specifications: three-phase AC 400/415V (± 10%), 50/60Hz, rated input current 15A, suitable for industrial power grids.

Output specifications: DC 565/585V DC bus, rated output current of 20A, meeting the power requirements for multi axis servo simultaneous operation.

Braking system: Integrated brake relay and ball AST connection, supporting 6-axis total braking and 2-axis independent braking control.

Secure coupling: seamlessly integrate with the robot safety system to achieve interlocking monitoring of emergency stop, safety door, and servo enablement.

Power distribution: Built in 24V DC voltage stabilization distribution provides auxiliary power for controllers, sensors, and braking units.

Watchdog monitoring: Equipped with Watchdog communication monitoring interface, it immediately triggers short-circuit braking when communication is interrupted to prevent servo loss of control.

Status indication: Onboard multi-color LED indicator lights display real-time power supply, rectification, braking, communication, and fault status for quick diagnosis.

Temperature protection: Equipped with a built-in temperature sensor, it automatically limits power or shuts down when the temperature exceeds the limit, protecting the module and surrounding devices.

Fan control: Integrated fan start stop output and operation status input monitoring to ensure reliable operation of the cooling system.

Battery management: equipped with a battery charging interface to charge the backup battery in the control cabinet, ensuring data storage after system power failure.

Modular design: Standard cabinet installation size, supports quick plugging and DIN rail fixation, easy maintenance, and replacement without complex debugging.

Anti interference design: Industrial grade EMC protection, resistant to strong electromagnetic interference, suitable for harsh workshop environments such as automotive manufacturing and welding.

Certification compliance: Compliant with industrial safety and electromagnetic compatibility standards such as EN ISO 13849-1 and IEC 61508, suitable for global applications.

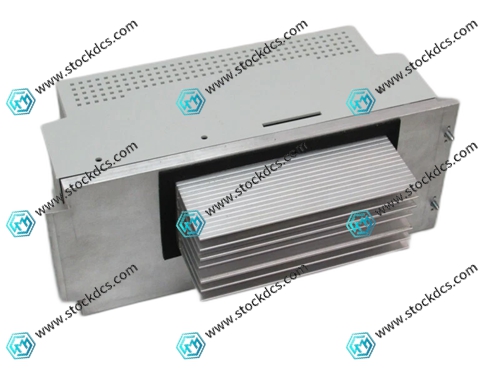

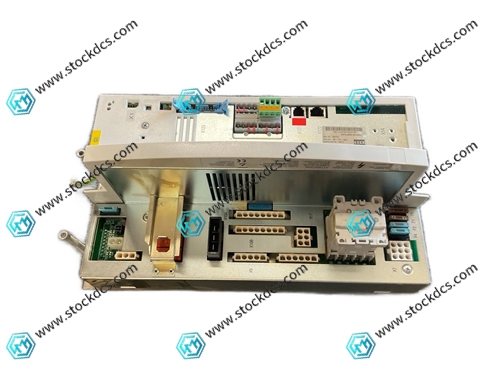

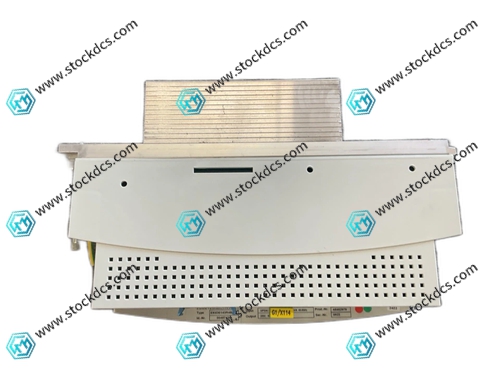

KPS-600/20-REL Product imag
