BUS20-80/135-31-033 servo drive

 BUS20-80/135-31-033 servo drive

Product Details Introduction

BAUMULLER BUS20-80/135-31-033 adopts vector control technology, supports accurate switching of position/speed/torque three modes, and adapts to the driving requirements of medium power servo motor, with control accuracy of ± 0.01rpm

Suitable for three-phase AC 380-480V power supply, with a voltage fluctuation tolerance of ± 10%, supporting 50/60Hz wide frequency input, strong ability to cope with industrial power grid fluctuations, and outstanding operational stability

Supports dual methods of cabinet installation and wall mounted fixation, with a compact structure and small space occupation. It is compatible with the standardized installation layout of the Baum ü ller BUS series and has high integration flexibility

BAUMULLER BUS20-80/135-31-033 has a protection level of IP54 and is dustproof, waterproof, and splash proof. It can be directly deployed in industrial scenarios such as mechanical processing and automated production lines

Compatible with mainstream industrial communication protocols such as Profinet, EtherCAT, Modbus RTU, etc., it responds quickly in conjunction with PLCs and motion controllers, with a data transmission delay of ≤ 1ms

The working temperature covers 0 ℃~55 ℃, with a humidity tolerance of 10%~90% (no condensation), and is equipped with an efficient heat dissipation design. The temperature rise during long-term continuous operation is ≤ 70K

BAUMULLER BUS20-80/135-31-033 is equipped with multiple protections for overcurrent, overvoltage, overheating, short circuit, and motor stalling. It can withstand 150% rated current overload for 60 seconds, ensuring the safety of the drive system

Support incremental/absolute encoder signal access, adaptive resolution adjustment, and closed-loop control algorithm to achieve high-precision position and velocity control

Equipped with a standard LCD operation panel, supporting local parameter modification and status monitoring, and compatible with remote debugging of upper computer software for convenient and efficient operation and maintenance

BAUMULLER BUS20-80/135-31-033 is deeply compatible with Baumuller DS series and DA series servo motors, without the need for additional adaptation modules, and has low integration costs

Adopting a modular hardware architecture and electrical isolation design, it has strong resistance to electromagnetic interference and complies with the EN 61800-3 electromagnetic compatibility standard, making it suitable for complex industrial environments

Supports 16 stage multi-stage speed control and PID regulation functions, and can freely configure process curves through parameters to meet the needs of multi scenario speed control and tension control

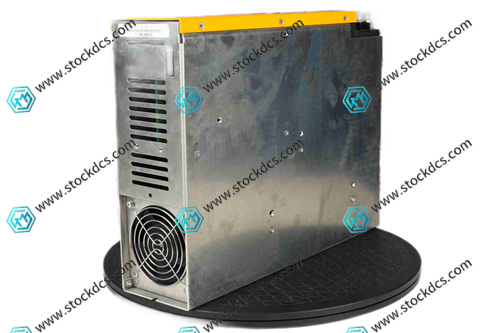

 BUS20-80/135-31-033 servo drive Product imag
