5716075-P DSDX452 Remote Input/Output Basic Unit

5716075-P DSDX452 Remote Input/Output Basic Unit

Product Details Introduction

5716075-P DSDX452 Remote Input/Output Basic Unit Usage Precautions

This unit is an ABB industrial grade remote input/output basic unit, compatible with Ability ™  The Ethernet networking of System 800xA platform should follow the following points to ensure remote data transmission and safe and stable operation of equipment.

1. Before installation, verify that the model number is 5716075-P DSDX452, confirm that the appearance is undamaged, the interface is intact, and the accessories are complete. Record the serial number for asset management and platform adaptation.

2. Installed in a ventilated and dry environment from -20 ° C to+70 ° C, away from strong electromagnetic interference sources, firmly fixed with DIN rails, with reserved heat dissipation space to avoid vibration affecting module stability.

3. Before wiring, it is necessary to disconnect the main power supply of the unit and related equipment, provide insulation protection, strictly prohibit live wiring, and prevent the risk of electric shock and interface burnout.

4. Verify that the power supply voltage is consistent with the rated requirements of the unit to ensure reliable grounding. Separate the wiring of network cables, signal cables, and power cables to avoid interference with remote transmission.

5. The network interface is firmly connected, with the correct IP address and communication parameters configured to ensure smooth networking with the 800xA platform. The cables are well protected to avoid pulling and damage.

6. Before debugging, confirm that the unit address matches the system configuration, test the accuracy of remote IO signal transmission, and verify the timeliness and accuracy of data transmission and reception.

7. Special testing of alarm interlocking function, checking the reliability of signal feedback and interlocking action under abnormal working conditions, to ensure the normal remote control logic.

8. It is prohibited to disassemble or touch internal components and interfaces without authorization during operation to avoid electrostatic damage, prevent live plugging and unplugging of cables, and prevent communication interruptions and equipment failures.

9. Regular maintenance requires cutting off the power and waiting for the capacitor to discharge. Use a brush to clean the surface and interface dust of the unit, check the tightness of the network cable joints, and strictly prohibit direct flushing with liquid cleaning agents.

10. When there is a malfunction, first disconnect the power and troubleshoot the wiring, network links, and load issues. If it is a communication fault, restart the unit and reset it. For difficult faults, contact professional personnel or manufacturer after-sales service.

Following the above points can extend the service life of the unit, ensure the stable operation of remote automation systems, and adapt to the remote control needs of various industrial scenarios such as manufacturing and power.

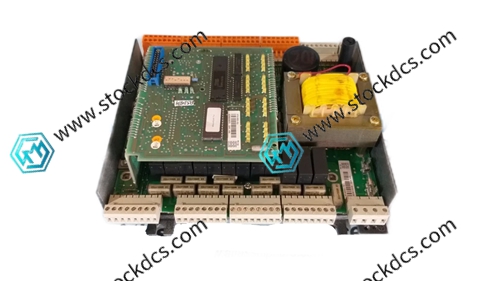

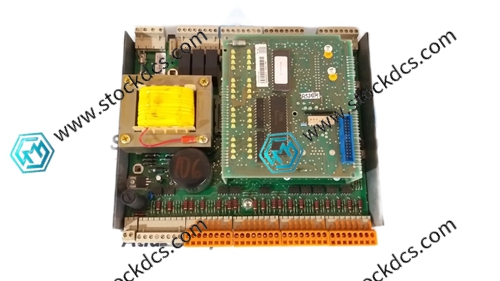

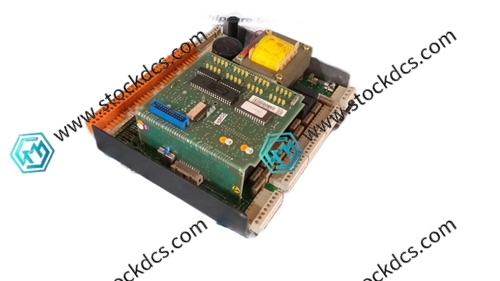

5716075-P DSDX452 Product imag
