Product Details Introduction

1、 Core positioning

The ACH580 series HVAC dedicated servo drive under ABB is designed to achieve precise adjustment of motor speed and torque, with a focus on high efficiency, energy saving, and stable control. It is specifically designed for HVAC and general industrial scenarios

Brand: ABB Switzerland, compatible with induction motors, permanent magnet synchronous motors (PM), synchronous reluctance motors (SynRM), and standard with 4kW three-phase asynchronous motors (such as ABB M3BP 100LA4)

Product status: Both brand new original (including original packaging) and refurbished parts that have passed testing are available. There is sufficient stock from third-party channels, and original products come with a one-year warranty service

2、 Key parameters

Power performance: rated power 4kW (5HP), output current 9.4A (7.2A in heavy load mode), input voltage 380-480V three-phase AC (50/60Hz ± 5%), efficiency up to 98%, power factor 0.98

Structural specifications: Wall mounted installation, dimensions 125mm (width) x 330mm (height) x 223mm (depth), weight 4.6kg, protection level IP21 (optional IP55 sealed version), integrated junction box design

Interface and Communication: 2 analog inputs, 6 digital inputs, 2 analog outputs, 3 relay outputs; Standard configuration includes RS-485/Modbus RTU, BACnet MS/TP protocol, and optional PROFIBUS DP communication module (model 3AXD50000039121) for extended compatibility

Safety and Protection: Built in SIL3/PL e-certified Safety Torque Off (STO) function, EMC compliant with IEC EN 61800-3 C2 level standard, with overcurrent, overvoltage, and overheating protection

3、 Core functions and applications

Core function: Supports dual control modes of torque/speed, built-in HVAC dedicated control logic, and has energy optimization algorithms; Equipped with an intuitive operation panel that supports Bluetooth remote debugging (optional panel required), remote monitoring and troubleshooting can be achieved through the DriveTune app

Application scenarios: HVAC systems (air handling units, cooling towers, fans), industrial pumps, conveyors, compressors, mixing equipment and other light working industrial scenarios, suitable for industries such as food and beverage, textile, material handling, etc

Substitution and compatibility: The low-power substitution model of the same series is ACH580-01-05A7-4 (2.2kW), and the high-power substitution is ACH580-01-12A4-4 (5.5kW); Can directly replace old ACS550 series drivers without changing installation dimensions and wiring logic

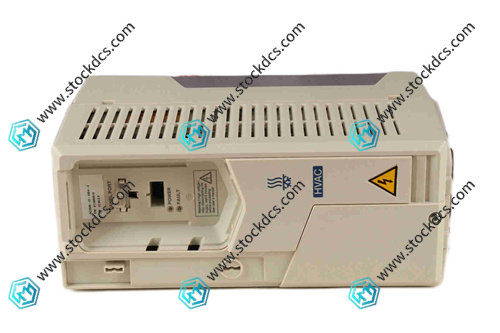

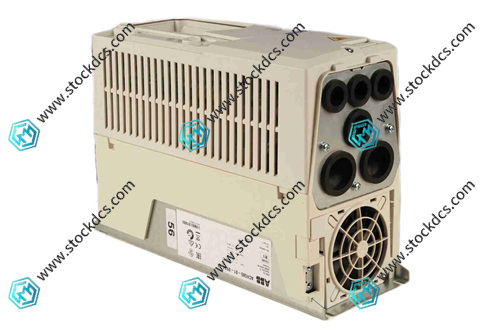

ACH580-01-09A4-4 Product imag
