Product Details Introduction

XVME-505/2 is a 3U single height single width VME bus 4-channel analog output module launched by Xycom, which supports voltage/current dual-mode output and is designed for industrial process control, closed-loop regulation, and analog signal drive scenarios.

Adopting a 3U single height single width VME architecture, occupying a single slot and compatible with standard VME backboards.

Provide 4 independent analog output channels, each channel can be independently configured as voltage or current mode.

Voltage output range: 0-5V, 0-10V, ± 5V, ± 10V (single/bipolar optional).

Current output range: 4-20mA standard current loop, suitable for industrial transmitters and actuators.

Output resolution: 12 bit D/A conversion, accuracy ± 0.5 LSB, excellent linearity.

Voltage output driving capability: ± 10mA (full range), current loop driving capability: 24V circuit compatible.

Output update rate: up to 10 kHz, meeting the requirements of fast closed-loop control.

Channel isolation: No channel isolation, common ground design, simplified system wiring.

Occupying 1KB of VME short I/O address space, the base address is configured through onboard jumpers.

Support VME interrupts, configurable output completion/error interrupts to enhance system response.

Power requirements:+ 5V@0.8A (Typical)/1.0A (maximum), no additional auxiliary power supply.

Working temperature: 0-65 ℃, storage temperature: -40-85 ℃, suitable for industrial environments.

Size: 3U VME standard (160mm × 100mm), suitable for compact VME chassis.

Compatible with VMEbus A16: D08 (O) device specifications and compatible with mainstream VME control systems.

Typical applications: industrial process control, valve drive, instrument calibration, closed-loop regulation, analog signal simulation.

XVME-505/2 has the core advantages of voltage/current dual-mode, 4-channel independent configuration, and high-speed updates. It is a classic module for analog output and process control in VME systems, compatible with pins of the same series XVME-595/2 (6U version), and can flexibly adapt to different chassis sizes.

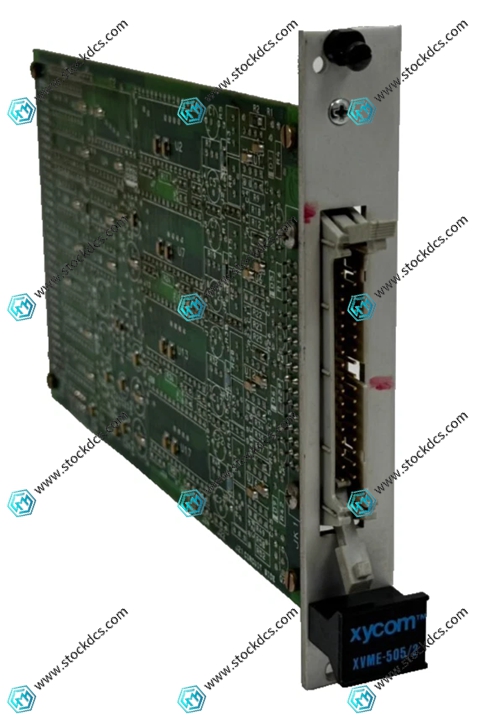

XYCOM XVME-505/2 Analysis of I/O Module Product imag
