Product Details Introduction

XVME-530 is a classic 6U VME bus 8-channel 12 bit isolated analog output module from Xycom. Each channel is independently optically isolated and has dual voltage/current modes, designed specifically for strong interference industrial control scenarios.

Adopting 6U VME standard architecture, single slot occupancy, compatible with VMEbus A16/D08 (O) specifications.

8 independent D/A output channels, each channel can be configured with independent jumper to output mode.

12 bit D/A resolution, total error ≤ ± 0.5 LSB, guaranteed monotonicity.

Voltage output range: 0-5V, 0-10V, ± 2.5V, ± 5V, ± 10V (single/bipolar).

Current output range: 4-20mA standard industrial current loop.

Each channel has 300V optoelectronic isolation, completely isolating digital logic and analog circuits, with extremely strong anti-interference ability.

Onboard independent DC/DC isolated power supply, no external auxiliary power supply required.

Each channel has independent gain/bias calibration and can be zeroed by software/hardware.

Conversion time 42 μ s, voltage stabilization time 8 μ s, current 30 μ s, fast response.

Occupy 1KB of VME short I/O address space, with the base address configured through onboard switches.

Supports VME interrupts, including status/control registers and LED status indicators.

Power supply:+5V ± 5%, typical 2.6A (4-20mA full load).

Working temperature 0-65 ℃, storage -40-85 ℃, humidity 5% -95% (non condensing).

Size 160mm × 233.4mm, compatible with standard VME chassis.

Typical applications: industrial process control, valve actuation, instrument calibration, distributed control systems, power monitoring.

XVME-530 has the core advantages of high isolation, multi-channel, and dual-mode output, making it the preferred module for analog output and strong interference environment control in VME systems.

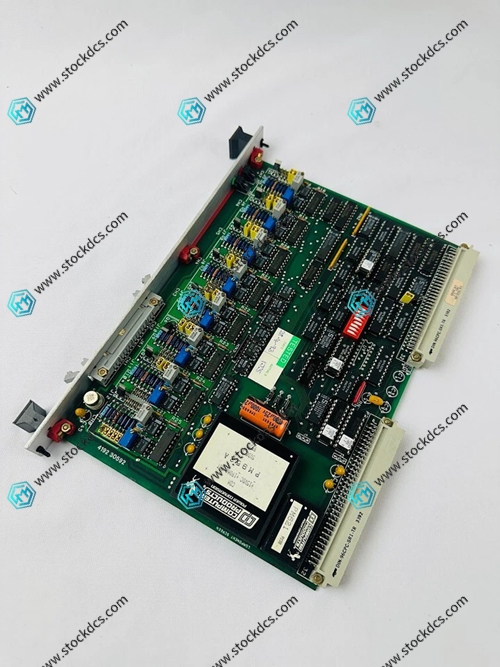

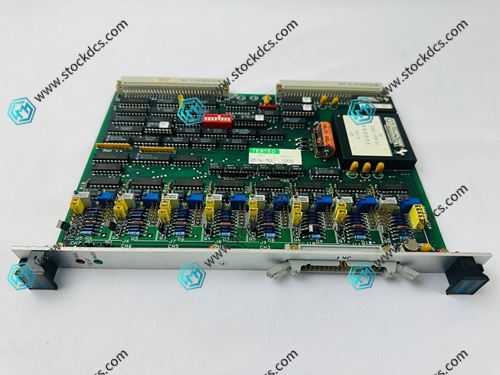

XVME-530 Product imag
