SEW MDV60A0022-5A3-4-00 electric drive

MDV60A0022-5A3-4-00 is a 2.2kW three-phase vector frequency converter of SEW MOVIDRIVE MD60A series, which focuses on open-loop/closed-loop asynchronous motor control and is suitable for high-precision speed regulation scenarios in industrial automation.

Rated power of 2.2kW, suitable for three-phase asynchronous motors.

Input: 3 × 380-500V AC, 50/60Hz, rated input current 5A.

Output: 3.8kVA, rated output current 5.5A, frequency range 0-180Hz.

Control mode: VFC (Voltage Flux Control)+CFC (Current Flux Control), supports vector control without encoder.

Overload capacity: 150% rated current (60s), 200% rated current (3s).

Power supply: compatible with standard VME+5VDC, with low overall power consumption and stable heat dissipation.

Built in EMC filter, meets EN 55011 B-class electromagnetic compatibility standard.

Protection level IP20 (rack mounted), suitable for integration inside control cabinets.

Working temperature: -10 ° C to+50 ° C, humidity 5% -95% RH (non condensing).

Size: approximately 105 × 273 × 138mm, weight 3.5kg, compact design.

Communication interface: Supports PROFIBUS, CANopen, Modbus RTU, etc., suitable for industrial networks.

Equipped with multiple protection mechanisms such as overvoltage, overcurrent, undervoltage, overheating, and motor stalling.

Support speed closed-loop, torque control, and position following to meet high-precision transmission requirements.

Compatible with SEW standard motors and third-party asynchronous motors, with convenient parameter self-tuning.

Application: Industrial scenarios such as conveyors, packaging machinery, material handling, textiles, printing, fans, and water pumps.

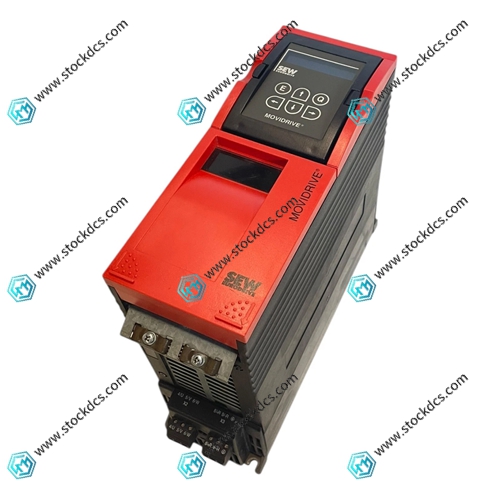

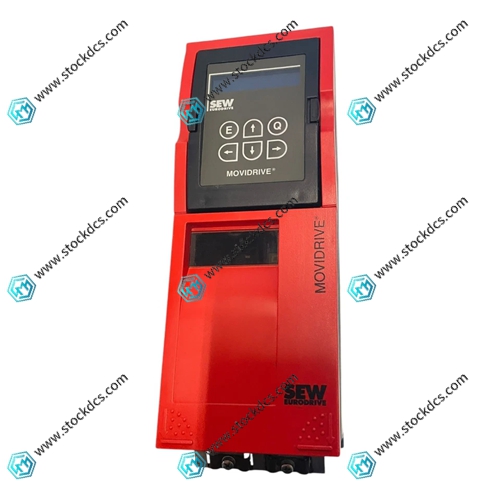

MDV60A0022-5A3-4-00 Product imag
