UCS-E160D-M2/K Dual Width Server Module

UCS-E160D-M2/K Dual Width Server Module

Product Details Introduction

UCS-E160D-M2/K Dual Width Server Module Product Features (15 items, plain text without links)

Adopting a dual wide blade configuration, occupying 2 service module slots on Cisco 4000 series ISR and other platforms, it can integrate computing and storage capabilities and adapt to network edge integrated deployment scenarios.

Equipped with Intel Xeon E5-2418Lv2 6 core processor, the main frequency is 2.0GHz, and 15MB three-level cache. The low-power design gives consideration to computing power and energy efficiency, and adapts to edge computing and lightweight virtualization requirements.

The memory supports RDIMM specifications, with a default configuration of 1 × 8GB and a maximum scalability of 16GB, meeting the memory resource requirements of small and medium-sized databases, application servers, and other scenarios.

Built in SAS controller, supports RAID 0/1/5 and other modes, equipped with 3 2.5-inch hot swappable hard drive slots, can flexibly expand storage capacity, ensuring data security and read-write performance.

Standard configuration includes 2 × 8GB SD cards, supporting SD card mirroring for quick system recovery, reducing the risk of system downtime, and adapting to deployment scenarios without local storage at the edge.

Integrated Gigabit Ethernet interface, supporting mainstream network protocols such as TCP/IP and DHCP, with stable network transmission, suitable for edge data return and remote management needs.

Compatible with Cisco UCS Manager management system, supports unified hardware monitoring, firmware upgrade, and configuration management, simplifies multi device operation and maintenance processes, and reduces management costs.

Supports PCIe expansion slots, which can be used to connect external network cards, HBA cards, and other accessories, expanding network connectivity and storage access capabilities, and adapting to complex edge business expansion needs.

Adopting intelligent heat dissipation design, dynamically adjusting fan speed according to CPU load, balancing heat dissipation efficiency and operating noise, suitable for deployment in multiple environments such as computer rooms and outdoor cabinets.

The working temperature range is 0 ℃ -40 ℃, with a relative humidity of 5% -90% and no condensation. It has good environmental adaptability and is suitable for complex operating environments at the edge of the network.

Support hardware level fault diagnosis, real-time monitoring of the status of core components such as CPU, memory, and hard disk, timely alerting, and improving system reliability and stability.

Compatible with mainstream virtualization platforms such as VMware and Hyper-V, it can run multiple virtual machines simultaneously, achieve multi business integration, and improve hardware resource utilization.

Built in power management module, supporting the ACPI power management standard, can adjust power consumption according to business load, and adapt to the energy-saving and consumption reducing needs of edge nodes.

Supports dual management modes of local and remote, with local configuration through serial port and remote operation through web interface and SSH protocol, adapting to different operational needs.

Compliant with international certification standards such as CE and FCC, compatible with global network equipment deployment standards, ensuring product compliance and compatibility, and reducing project acceptance risks.

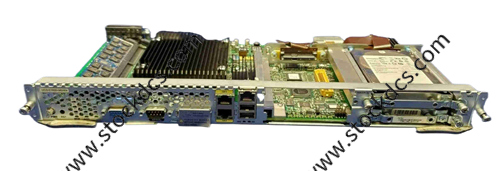

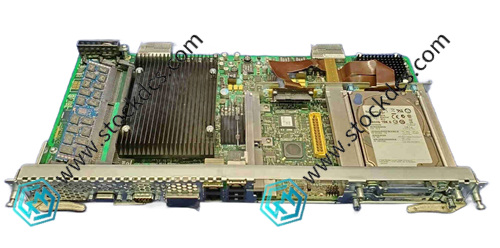

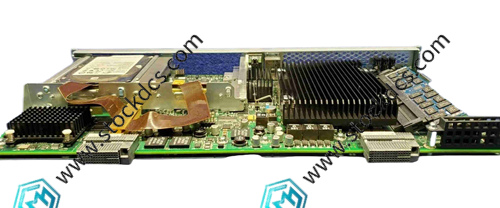

UCS-E160D-M2/K Product imag

UCS-E160D-M2/K ontroller Module
