Product Details Introduction

P0903ZE Bus Isolator Module Product Features

1. The core implements electrical isolation of bus signals, with an isolation voltage of 1500V AC, effectively blocking bus link interference and ensuring signal transmission integrity.

2. Compatible with mainstream industrial bus protocols such as Modbus and TCP, with transparent data transmission without delay, supporting a high-speed bus rate of 1Mbit/s, and adapting to real-time control requirements.

3. Supports wide voltage input of 200~240VAC, built-in power isolation circuit, equipped with 1A current short-circuit protection and reverse connection protection, ensuring full electrical safety.

4. Integrated multi-stage EMI filters and 1500W lightning protection, excellent anti electromagnetic interference performance, and can withstand strong interference environments in industrial sites.

5. Supports point-to-point, star shaped, and cascaded topology structures, can extend bus transmission distance, and flexibly adapt to different industrial field wiring requirements.

6. Seamless adaptation to Schneider Modicon 140 series PLC, can quickly integrate into distributed control system (DCS), with strong compatibility.

7. Equipped with multiple sets of LED status indicator lights, providing real-time feedback on bus communication, power supply, and isolation status, and triggering relay alarm output in case of abnormalities.

8. Passed ISO 13849 SIL2 safety certification, compliant with IEC industrial standards, suitable for high-risk industrial scenarios such as power and metallurgy.

9. Wide temperature working range -25 ℃~70 ℃, humidity 0%~95%, no condensation, anti vibration performance of 5-9Hz/3.5mm, strong environmental adaptability.

10. Support multi module cascading and power redundancy configuration, enable hot swappable maintenance, and ensure 24-hour continuous and stable operation of the bus system.

11. Adopting an industrial grade wear-resistant metal shell with a protection level of IP20, it is dustproof and moisture-proof, and can withstand the corrosion of harsh working conditions in industrial sites.

12. Suitable for TS-35 standard DIN rail installation, compact design, can be densely deployed in electrical control cabinets, reducing wiring and installation costs.

13. Built in fault diagnosis module, which can monitor the real-time status of bus link continuity and signal attenuation, accurately locate the fault point for quick troubleshooting.

14. The mean time between failures (MTBF) performance is excellent, and it has undergone a full process stability aging test. The official provides a one-year warranty, ensuring more reliable operation.

15. Widely applicable to scenarios such as power monitoring, rail transit, petrochemicals, etc., it can be used for bus link protection, signal relay, and interference isolation.

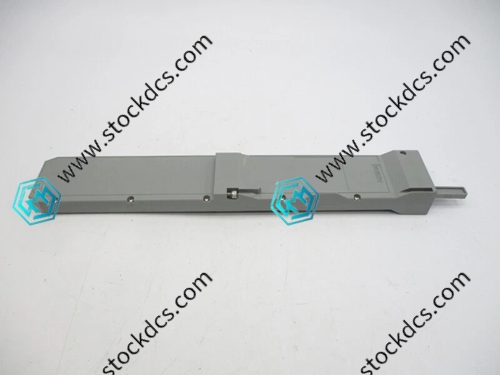

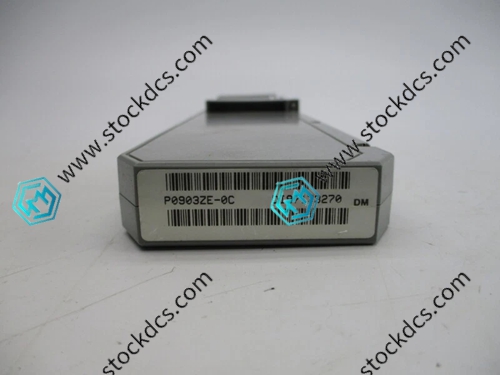

P0903ZE Product imag

P0903ZE ontroller Module
