685-151509-001 power module

685-151509-001 power module

Product Details Introduction

685-15590-001 Precautions for using power module

Wear an anti-static wristband throughout the module unpacking and installation process to prevent static electricity from penetrating the internal voltage regulator chip and capacitor components.

During installation, align the device backplate slot and gently push it into place. Tighten the fixed buckles on both sides and strictly prohibit violent insertion and removal that may cause wear on the golden fingers.

Before wiring, check the terminal identification and clearly distinguish between AC input, DC output, and grounding ports to prevent module burnout caused by incorrect port connections.

The input power supply must comply with the rated voltage range of the module. Before connecting, use a multimeter to check the voltage value and confirm that there is no overvoltage or undervoltage before powering on.

Before connecting the output end to the load, calculate the total power of the load to ensure that it does not exceed the rated output power of the module, and prohibit overloading operation to trigger the protection mechanism.

When wiring, tighten the terminal screws according to the specified torque to avoid loosening and causing poor contact, such as terminal overheating and power interruption.

The operating environment temperature of the module is controlled between -15 ℃~55 ℃, with a relative humidity of 10%~90% and no condensation. It is kept away from high temperature heat sources and corrosive gases.

Ensure that the module's heat dissipation grille is unobstructed by foreign objects, and that there are no abnormal noises when the fan is running, to ensure timely heat dissipation and prevent module overheating.

When multiple modules are redundantly powered, it is necessary to strictly follow the manual requirements to connect the current balancing line, ensure balanced current distribution, and avoid single module overload damage.

After powering on, first observe the status of the running indicator light. The indicator light should light up normally without any fault alarms, and then gradually connect the load equipment.

Do not plug or unplug input or output cables during module operation to prevent transient surge currents from impacting internal circuits.

Regularly check the input and output voltage of the module. If the voltage fluctuation exceeds the allowable range, immediately cut off the power and investigate the cause of the fault.

When cleaning the surface of the module and the cooling fan, the power should be disconnected first, and a dry soft bristled brush should be used to gently sweep away dust. The use of liquid cleaning agents is prohibited.

When idle for a long time, disconnect all wiring of the module, place it in an anti-static packaging bag, and store it in a dry, ventilated, and dust-proof environment.

Non professional maintenance personnel are strictly prohibited from disassembling the module casing. When a fault occurs, record the status of the indicator light and the fault phenomenon, and contact the manufacturer's after-sales service for handling.

Summary: The use of the 685-15590-001 power module should focus on anti-static protection, port wiring specifications, and load power matching. Daily maintenance should pay attention to heat dissipation, cleaning, and voltage monitoring to avoid risk operations such as overload operation and live plugging. This can effectively ensure the stability and service life of the module's power supply.

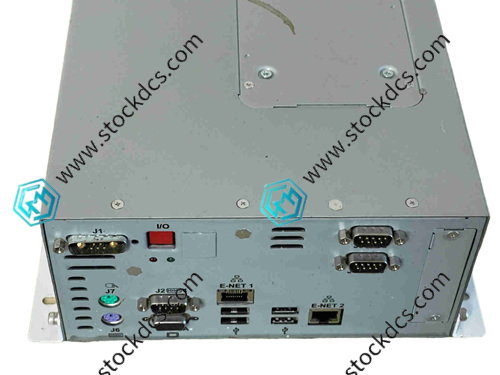

685-151509-001 Product imag

685-151509-001 ontroller Module
