Product Details Introduction

01-25-03508 Precautions for using processor module

Wear anti-static wristbands and gloves throughout the module unpacking and installation process to prevent static electricity from penetrating the core computing chip.

During installation, align with the gold finger position on the motherboard slot and gently push it into place. Tighten the fixing buckle and do not forcefully insert or shake the module.

Before wiring, check the terminal pin definitions and strictly distinguish between power, communication, and I/O signal ports to prevent module burnout caused by mixing.

The power supply needs to match the rated voltage of the module. When wiring, confirm that the positive and negative polarities are correct and there is no short circuit hazard before powering on.

Shielded twisted pair cables are selected for communication cables, which are routed separately from power cables with a spacing of no less than 20cm to reduce electromagnetic interference.

When connecting expansion modules or peripherals, it is necessary to operate in a power-off state to ensure that the communication bus connector is securely plugged in and the fixing screws are locked.

The operating environment temperature of the module is controlled at -5 ℃~60 ℃, the relative humidity is maintained at 5%~95% without condensation, and it is kept away from heat sources and corrosive gases.

Before downloading the program, backup the original program and parameters to avoid accidental operations that may overwrite critical control logic and affect system operation.

After the first power on, observe the status of the running indicator light, which flashes normally without any fault alarms, and then perform program debugging.

During debugging, a step-by-step loading method is used to test the basic communication functions first, and then gradually enable the operation and control modules.

Do not plug or unplug any cables or expand modules during module operation to prevent hardware damage from transient current surges.

Regularly check the module wiring terminals and cooling fan, tighten loose screws, clean the fan filter dust, and ensure smooth heat dissipation.

When cleaning the surface of the module, power off first and use a dry soft bristled brush to gently sweep away dust to prevent liquids from entering the interior of the module.

Disconnect the power supply of the module during long-term shutdown, pack it with dust-proof and moisture-proof materials, and store it in a dry and ventilated environment.

Non professional maintenance personnel are strictly prohibited from disassembling the module casing. When a fault occurs, record the fault code and indicator light status, and contact the manufacturer for handling.

Summary: The use of the 01-25-03508 processor module requires special attention to anti-static protection, wiring specifications, and anti-interference wiring. The program download and debugging should follow the step-by-step operation principle, and daily maintenance should focus on heat dissipation and terminal fastening to avoid risky behaviors such as live plugging and illegal disassembly, which can ensure the stability of module operation and system control accuracy.

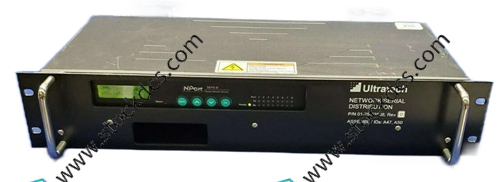

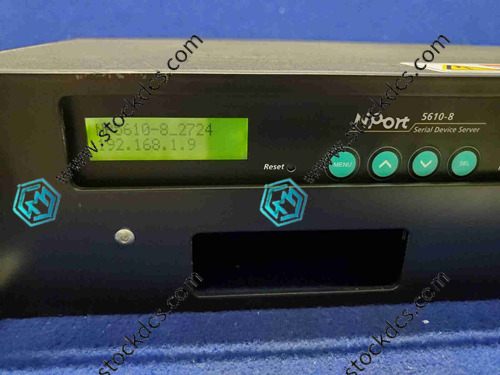

01-25-03508 Product imag
