PHILIPS PR1613 Weighing Machine Display Screen

PHILIPS PR1613 Weighing Machine Display Screen

Product Details Introduction

PHILIPS PR1613 Weighing Machine Display Instrument

PR1613 is an industrial grade high-precision weighing display controller from Philips (Sartorius OEM/cooperation), divided into multiple sub models (/00/01/03/04), not just a display screen but an integrated instrument with complete weighing control.

Display configuration: The main display is a 7-segment vacuum fluorescent green screen, with a character height of 12.5mm and attached weighing/status symbols; /03/04 Stainless steel shell version with additional 2 lines of 20 characters 5 × 7 dot matrix Chinese/multilingual information screen

Processor and Control: Built in programmable PLC, supports customized weighing process, automatic zero point tracking, multi range switching (3 ranges)

Sensor interface: Supports 4-wire/6-wire weighing sensors, optional 12V/20V sensor power supply, can connect multiple sets of sensors

Communication Expansion: Up to 4 serial ports (TTY/RS232/RS422/485), optional PROFIBUS-DP, analog I/O, BCD output, printer interface

Input/output: 6 optical isolated inputs, 12 optical isolated outputs, customizable weighing logic linkage

Power supply version:/00/03 is 110/220V AC; /01/04 is a 24V AC/DC industrial power supply

Protection level:/00/01 aluminum shell IP30 body, panel IP65; /03/04 Full stainless steel IP65 complete machine

Accuracy index: Complies with EN45501 (OIML R76), 5000e Level III, internal resolution up to 180000 counts

Environmental tolerance: Wide temperature operation (industrial -10 ℃ to+55 ℃), anti vibration, anti electromagnetic interference, in compliance with industrial EMC standards

Calibration method: Supports weight free calibration (input sensor parameters), multilingual operation interface

Typical applications: truck scale, platform scale, batching system, crane weighing, vehicle mounted weighing

Power consumption parameters: AC version about 19-22.5W, DC version about 18-23W, low power consumption suitable for long-term operation

Storage and clock: optional memory expansion, Alibi memory backup for legal weighing data, and/03 standard independent RTC

Installation form: panel embedded installation, compatible with standard control cabinet openings

Stock status: Classic industrial spare parts, suitable for maintenance and upgrading of old weighing systems, with professional maintenance and parts supply in some areas

Display advantages: high brightness of fluorescent screen, clear and readable from a distance in industrial environment, dot matrix screen version supports detailed operation prompts and error messages

Security compliance: Equipped with weighing regulation certification, supporting data tampering prevention, and meeting the requirements of trade settlement scenarios

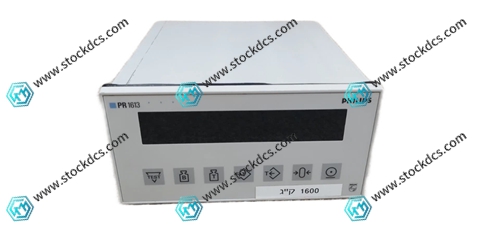

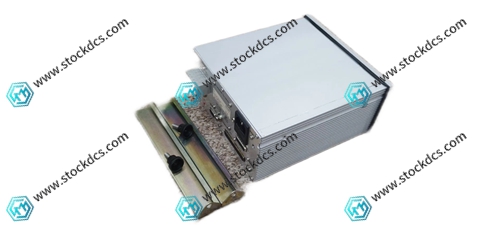

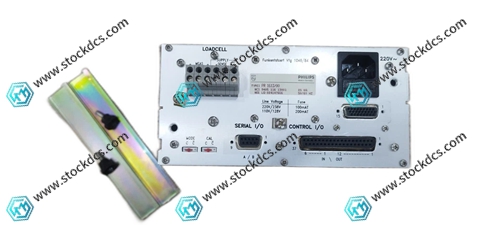

PR1613  Product imag

PR1613  ontroller Module
