XYCOM XVME-566 Analog Input Card

XYCOM XVME-566 Analog Input Card

Product Details Introduction

XYCOM XVME-566 Analog Input Card Product Features

XYCOM XVME-566 is a high-performance industrial analog input card designed for the VMEbus bus, featuring high-speed data acquisition, large capacity cache, and flexible channel configuration, suitable for industrial automation, high-speed data acquisition, and process control scenarios.

Supports 32 single ended/16 differential analog inputs, which can be flexibly switched according to on-site anti-interference requirements.

Adopting 12 bit A/D conversion and a maximum single channel sampling rate of 100kHz, it meets the requirements of high-speed dynamic signal acquisition.

Built in 64KB dual port RAM, capable of storing over 32000 sampling points, relieving the bandwidth pressure of VME bus during high-speed acquisition.

Equipped with 256 byte sequential RAM, programmable custom channel sampling order, suitable for complex acquisition processes.

Single channel 12 level programmable gain, independently configured through gain RAM, suitable for weak and strong amplitude sensor signals.

Supports three triggering modes: onboard/external/software, paired with a programmable sampling clock to flexibly control the acquisition rhythm.

Compatible with VMEbus standard interrupts and programmable interrupt timers, facilitating real-time system response to collection events.

Adopting a 6U dual slot VME board structure, it complies with VMEbus mechanical specifications and is easy to install and expand.

Industrial grade wide temperature design, suitable for harsh industrial environments ranging from -40 ℃ to+85 ℃, stable and reliable operation.

Built in signal conditioning circuit, can be directly connected to industrial sensors, reducing the cost of peripheral circuit design and debugging.

Supports VMEbus standard power supply, low-power design, and is suitable for high-density rack mounted deployment.

Compatible with mainstream VMEbus control systems and industrial software such as EPICS, with strong system integration compatibility.

Factory calibration parameters are solidified to ensure the stability of collection accuracy for long-term use.

Suitable for scenarios such as high-speed data acquisition, equipment status monitoring, automated testing, and industrial process control.

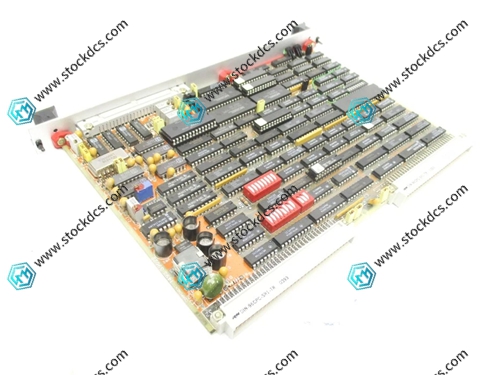

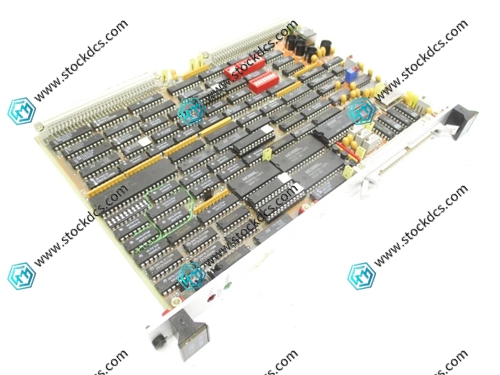

XVME-566  Product imag
