Xycom XVME-560 Analog Input Module

Xycom XVME-560 Analog Input Module

Product Details Introduction

Xycom XVME-560 Analog Input Module Product Features

Xycom XVME-560 is an industrial grade analog input module adapted to the VMEbus bus. It focuses on high channel density and high-precision signal acquisition, balancing multi scenario adaptability and industrial reliability. It is the core I/O component of process control and automation monitoring systems.

Supports 64 single ended inputs or 32 differential inputs, which can flexibly match sensor wiring requirements. Differential mode can effectively suppress common mode interference.

Built in 12 bit A/D converter, paired with DMA transfer mechanism, ensures efficient and real-time data acquisition.

The input range can be flexibly configured through jumper wires, covering ± 5V (default), ± 10V, ± 2.5V, 0-10V, 0-5V, etc., suitable for most industrial analog sensor signals.

Software programmable gain, supporting 1, 2, 4, and 8 times gain adjustment, can accurately adapt to input signals of different intensities.

The channel and system have optoelectronic isolation, with an isolation voltage of 1500Vrms, enhancing anti-interference and safety protection capabilities.

Supports a maximum sampling rate of 50kHz (optional 20kHz) to meet the requirements of high-speed dynamic signal acquisition scenarios.

Compatible with any level (11-17) interrupt of VMEbus, facilitating fast data exchange with the upper computer and other VMEbus modules.

Adopting a car mounted DC/DC converter to improve power supply stability and reduce the impact of power supply fluctuations on acquisition accuracy.

Following the standard VME-64 board size design, no additional casing is required and can be directly embedded into the VMEbus system for easy installation.

Industrial grade wide temperature working range, from -40 ℃ to+85 ℃, suitable for complex temperature environments such as outdoor and workshop environments.

Standard VMEbus power supply (+5V,+12V), typical power consumption of 1.5W, low power consumption suitable for high-density system deployment.

Integrate a small number of digital I/O interfaces for module status indication, facilitating quick on-site troubleshooting of operational abnormalities.

Supports VMEbus standard IEEE 1014, compatible with Xycom's full range of I/O architectures, and has strong system expansion compatibility.

Built in signal conditioning circuit can directly process weak analog signals output by industrial field sensors, reducing the need for peripheral devices.

Support hot swappable maintenance (adaptation of main station I/O modules), module replacement can be completed without downtime, reducing operation and maintenance costs.

Factory preset calibration parameters and on-site software calibration are supported to ensure stable acquisition accuracy for long-term use.

This module is centered around high channel count, strong compatibility, wide adaptability, and industrial grade reliability, and can seamlessly integrate into various VMEbus automation systems to meet diverse signal acquisition needs from precision process control to industrial field monitoring.

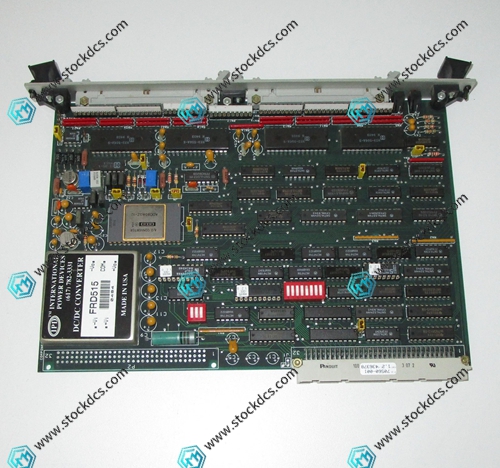

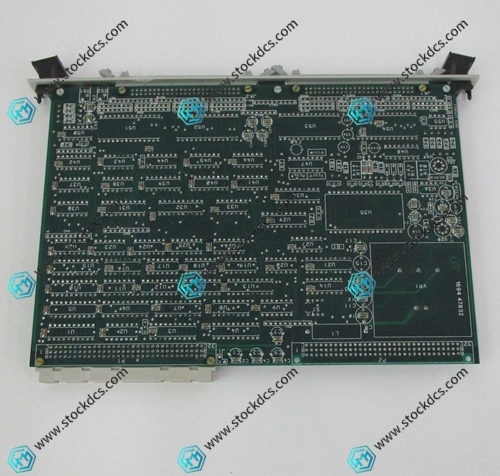

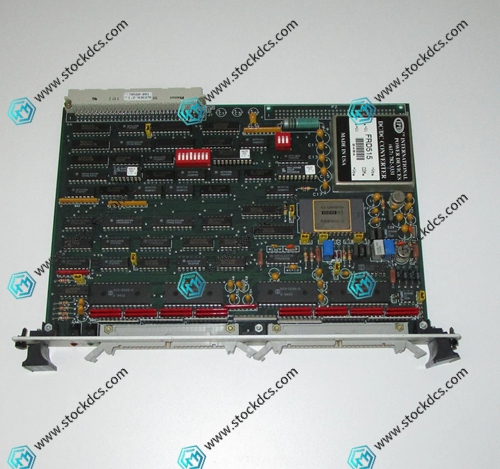

XVME-560 Product imag
