Product Details Introduction

Xycom XVME-240 Digital Input/Output Module

XVME-240 is a 6U dual slot VME bus TTL digital I/O module launched by Xycom, providing 80 programmable bidirectional channels, designed specifically for high-speed digital signal acquisition and control in industrial automation, DCS, and SCADA systems.

Adopting a 6U dual slot VME bus architecture, compatible with standard VME chassis and backplanes.

Integrate 80 TTL level I/O channels, divided into 8 groups of 10 bit programmable ports.

64 channels form 8 byte wide bidirectional ports, which can be independently programmed as input or output.

Each channel supports edge triggered interrupts and actively notifies the host when the signal changes.

Single channel maximum current of 20 mA, compatible with TTL level device drivers.

Occupy 1K bytes of VME short I/O address space for easy system addressing.

Onboard status/control registers, supporting real-time configuration and status monitoring.

Built in Pass/Tail indicator light for quick diagnosis of module operation status.

Support multi module cascading and flexibly expand the number of I/O channels.

Compatible with XYCOM standard I/O architecture, it can work in conjunction with modules such as XVME-202 and XVME-244.

Industrial grade wide temperature design, operating temperature range of -40 ° C to+85 ° C.

Compliant with IEC 60068 anti vibration/shock standards, suitable for harsh industrial control environments.

Meets the electromagnetic compatibility requirements of IEC 61000 and has strong anti-interference ability.

Powered by VME bus+5V, the typical power consumption is about 5W.

Widely used in automated production lines, process control, equipment monitoring, and data acquisition scenarios.

XVME-240, with its high-density, programmable, and interrupt driven characteristics, has become a classic solution for digital I/O control in VME systems, suitable for industrial applications that require a large amount of TTL signal interaction.

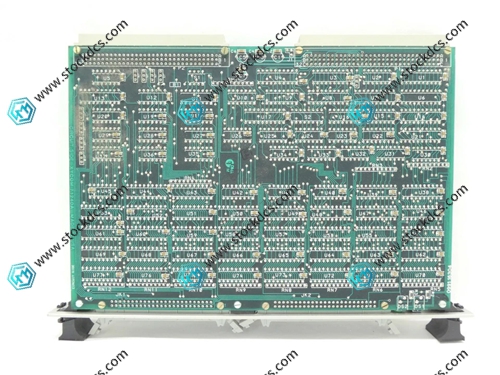

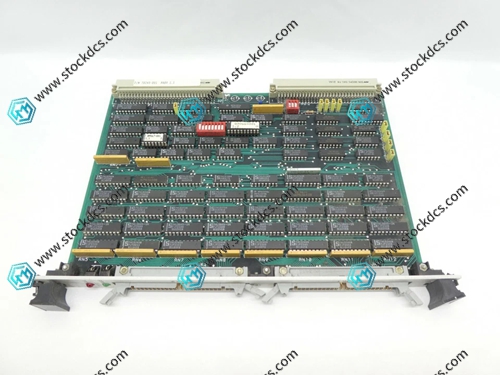

XVME-240  Product imag

XVME-240  ontroller Module
