HIMA F3315 interface module

HIMA F3315 interface module

Product Details Introduction

HIMA F3315 is a safety communication/interface module of the HIMatrix F3 series, used for safety communication and data exchange between safety controllers, remote I/O, and upper level systems, meeting SIL 3 safety level.

Core positioning and security features

Belonging to the HIMatrix F3 series safety interface module, designed for fault safety and compatible with SIL 3 safety systems.

Compliant with IEC 61508 SIL 3, ISO 13849 PLe, and certified by T Ü V.

Adopting a quadruple normalization (QMR) architecture, single channel failures do not affect the safe operation of the system.

Hardware and electrical parameters

Communication interface: Standard configuration includes 2 x RJ45 and supports 10/100Mbps Ethernet.

Communication protocol: Supports secure protocols such as SafeEthernet, Profisafe, Modbus TCP, etc.

Power supply: 24VDC (-15%~+20%), with reverse polarity and overcurrent protection.

Isolation: The communication port is electrically isolated from the backplane, with a withstand voltage of ≥ 2.5kV.

Diagnosis: Real time monitoring of communication links and port status, faults can be located at the channel level.

Response time: Communication delay ≤ 1ms, meeting the requirements of high-speed safety interlocking.

Environment: Working temperature -20 ℃~+60 ℃, protection level IP20, DIN rail installation.

Function and System Characteristics

Secure Communication: Implement secure data transmission between the controller and remote I/O modules, and support redundant communication.

Data exchange: Secure data exchange with upper level systems such as DCS and PLC, supporting SOE event recording.

Hot swappable: supports online replacement and maintains uninterrupted safe system operation.

Time synchronization: Supports SNTP protocol to ensure system time consistency.

Compatibility: Compatible with HIMatrix controllers such as F35 and F60, and compatible with F32/F33 series I/O modules.

Typical application scenarios

Petrochemical industry: ESD emergency shutdown system, SIS safety instrument system, reactor interlock.

Oil and gas energy: safety control of long-distance pipelines, safety communication of offshore platforms, and flare systems.

Power industry: boiler protection, turbine overspeed shutdown, generator safety control.

Manufacturing industry: robot safety doors, production line emergency stops, high-speed packaging machine safety communication.

Module advantages

High reliability: With quadruple diagnosis and extremely high MTBF, it meets the requirements of long-term fault free operation.

Strong compatibility: Supports multiple security protocols and seamlessly integrates with HIMA and third-party systems.

Easy to maintain: Channel level fault diagnosis, hot swappable design, significantly reducing maintenance time.

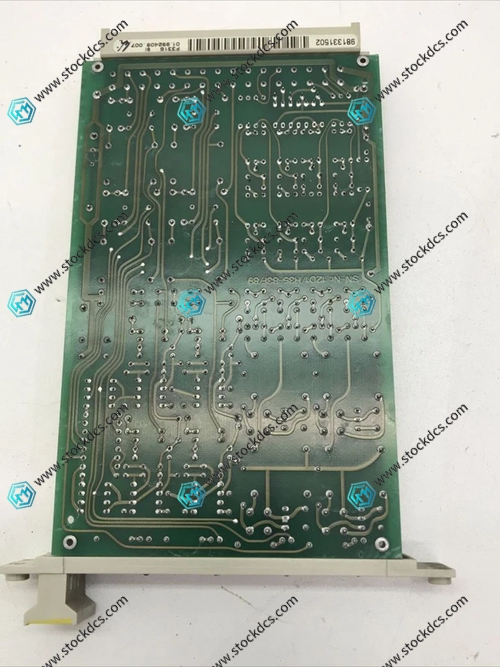

F3315 Product imag

F3315 ontroller Module

MOTOROLA MVME162-213 microprocessor
NI SCXI-1001 Digital to Analog Converter
WESDAC D20ME 526-2004-03A-270957 Automation Control Module
