Product Details Introduction

MVI71-GEC Serial/Ethernet Communication Module

MVI71-GEC is a universal ASCII serial port and Ethernet communication module designed by ProSoft specifically for Rockwell PLC-5 (1771 rack). Its core enables bidirectional data exchange between PLC-5 and various serial port devices, TCP/IP network devices, supports multiple server/client connections, and is suitable for remote monitoring in industrial sites and network transformation of old equipment.

Core product features

Single slot compatible with 1771 backplane, directly installed on PLC-5 rack

1 RS-232 configuration/debugging port (RJ45 to DB9 support), supporting hardware handshake

1 RJ45 Ethernet port (10/100 Base-T), supporting TCP/IP protocol

Built in 5 server/client connections, supporting simultaneous access of multiple devices

A single ASCII string can support up to 2048 characters, meeting the requirements for large text data transmission

Communication with PLC backplane through BTR/BTW block transmission, without occupying the main scanning cycle

Users can customize memory allocation and transfer up to 4000 bytes of data in both directions

Support RTS/CTS, XON/XOFF and other flow control, suitable for radio stations, modems, and multi drop scenarios

Provide complete status and error feedback, support online diagnosis through PCB software

Front end LED indicator module, Ethernet, backplane, and application status for quick troubleshooting

Industrial grade electrical isolation (1500V rms), strong anti electromagnetic interference capability

Working temperature 0-60 ℃, storage -40-85 ℃, anti vibration and anti impact design

Backplane power consumption 800mA@5V The PLC needs to provide sufficient power supply

Support byte order switching (Rx/Tx) and adapt to data formats of different end ian devices

Supporting ladder diagram examples and AOI, simplifying PLC program integration and debugging

Typical application areas

Discrete manufacturing: docking barcode guns, weighing instruments, inkjet printers, and labeling machines to achieve production data collection and traceability

Process industry: Connect flow meters, pressure/level transmitters, water quality analyzers to achieve remote monitoring of process parameters

Upgrading old equipment: connecting old RS-232/485 instruments, PLC, HMI to PLC-5 Ethernet system

Remote monitoring and maintenance: Implementing remote PLC program download, debugging, and fault diagnosis through Ethernet

Warehouse logistics: connecting electronic tag picking, AGV scheduling terminals, and three-dimensional warehouse equipment to improve operational efficiency

Energy industry: adapted to oil and gas metering pry, power measurement and control terminals, meeting the needs of remote transmission and data collection

Chemical and pharmaceutical industry: Integrate DCS system and reactor control equipment to achieve process parameter linkage and safety monitoring

Universal Data Gateway: As a serial port to Ethernet gateway, it provides unified access to multiple non-standard ASCII devices and network terminals

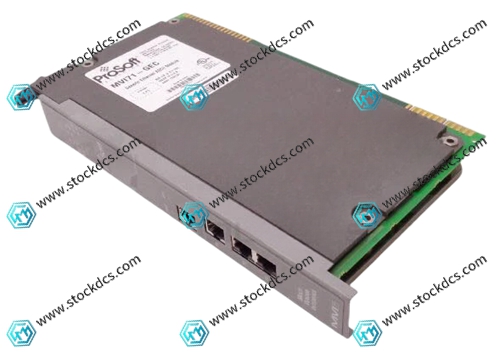

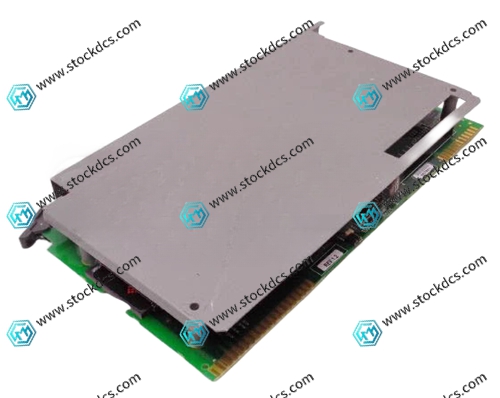

MVI71-GEC Product imag

MVI71-GEC ontroller Module
