HIMA F4203A Controller Module

HIMA F4203A Controller Module

Product Details Introduction

HIMA F4203A is a safe digital output module of the HIMatrix series from Germany, designed specifically for critical scenarios such as SIL 2/3 level safety interlocking, ESD, BMS, etc., providing high reliability and fault safe switch output.

Core positioning and security features

Belonging to the HIMatrix F4 series safety I/O module, with a fail safe design, single module failure does not affect system safety.

Meets the IEC 61508 SIL 2/3 safety level, certified by T Ü V, and compatible with Safety Instrumented Systems (SIS).

Adopting dual channel redundant output, internal cross diagnosis, and forced fail safe.

Hardware and electrical parameters

Output type: Secure Digital Output (DO), 16 channels (8 redundant groups).

Output capability: Maximum 2A/24VDC per channel, supporting active/passive load driving.

Power supply: 24VDC safe power supply with power redundancy and reverse polarity protection.

Isolation: Electrical isolation between channels, modules, and backboards, with a withstand voltage of ≥ 2.5kV.

Diagnosis: Each channel independently detects short circuits, disconnections, and overloads, and reports fault status in real-time.

Response time: Output action ≤ 1ms, meeting the requirements of high-speed safety interlock.

Environment: Operating temperature range of -20 ℃ to+60 ℃, protection level of IP20, suitable for installation in control cabinets.

Function and System Characteristics

Security logic: Built in security voting logic, supporting 1oo2 and 2oo2 output configurations.

Online replacement: supports hot swapping, online maintenance ensures uninterrupted and safe operation.

Event recording: Built in SOE record with timestamp, traceable output actions and faults.

Communication: SafeEthernet enables secure communication with controllers (such as F35/F60) and supports star/linear topologies.

Compatibility: Compatible with HIMatrix F35/F60 controllers, seamlessly integrated with HIMA safety systems.

Typical application scenarios

Petrochemical industry: ESD emergency shutdown, valve safety shutdown, reactor interlocking.

Oil and gas energy: Long distance pipeline shut-off valves, offshore platform safety interlocks, flare system control.

Power industry: boiler protection, turbine overspeed shutdown, generator safety shutdown.

Manufacturing industry: robot safety doors, production line emergency stops, high-speed packaging machine safety control.

Module advantages

High reliability: quadruple diagnosis (QMR), extremely high MTBF, meeting long-term fault free operation.

Easy integration: Standardized backplane, mixed with F32/F33 series I/O, simplifies system design.

Strong diagnosis: Channel level fault location, significantly reducing maintenance time and improving availability.

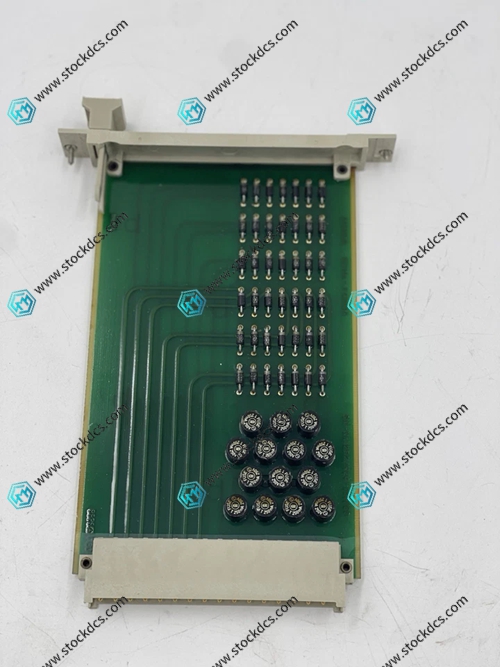

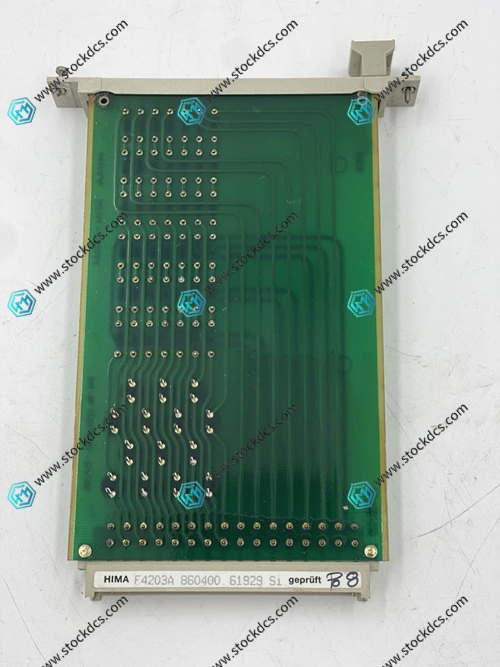

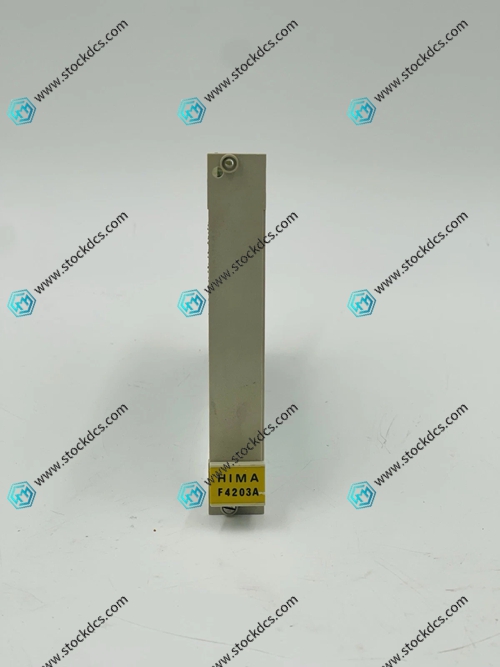

F4203A  Product imag
