Product Details Introduction

MVME-202 is an industrial grade single board computer with VMEbus architecture launched by Motorola (later Emerson), based on the 68040 processor, designed specifically for real-time control, data acquisition, and embedded industrial systems.

15 core characteristics

Core processor: Equipped with Motorola MC68040 processor, with a main frequency of 33MHz, built-in hardware FPU, and support for floating-point operations.

Memory configuration: Comes standard with 8MB SDRAM and supports expansion up to 32MB to meet real-time data processing requirements.

Storage solution: Onboard Flash/EPROM electronic drive, maximum 4MB, no mechanical hard drive, suitable for harsh environments.

VMEbus interface: standard 6U VME size, P1/P2 dual connectors, compatible with VMEbus backplane communication.

Serial port resources: Integrate 2 RS-232 serial interfaces for device debugging and peripheral communication.

Parallel interface: Provides 1 parallel port, compatible with traditional industrial peripherals and printers.

Real time clock (RTC): Built in real-time clock with backup battery, supporting power-off time maintenance.

Non volatile memory (NVRAM): Equipped with SNAPHAT battery powered NVRAM to store critical configuration data.

Wide temperature operation: Operating temperature range of -40 ° C to+85 ° C, suitable for extreme industrial site environments.

High anti-interference performance: Complies with MIL-STD-810 vibration and impact standards, designed for industrial electromagnetic compatibility.

Dual power supply: Supports dual input of 5V and ± 12V, power consumption<20W, suitable for distributed control systems.

Compact size: 233.35mm × 160.02mm, 6U single slot, saving cabinet space.

RTOS support: Compatible with real-time operating systems such as VxWorks and VRTX, with microsecond level interrupt response.

Firmware upgradable: Supports online updates of Flash firmware, making it easy to expand functionality and fix bugs.

Application scenarios: Widely used in industrial robots, automated production lines, rail transit, military measurement and control, and other fields.

ending

MVME-202 is known for its stability, reliability, strong real-time performance, and rich interfaces, and is a classic VME computing platform in legacy industrial control systems.

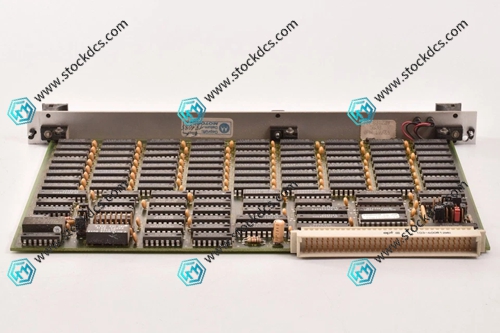

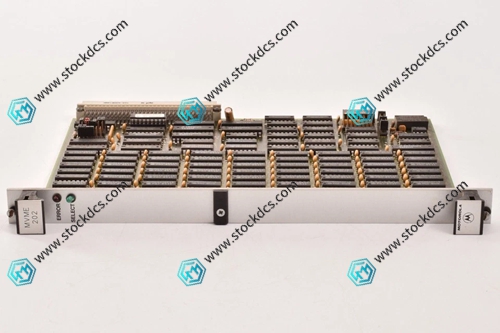

MVME-202 Product imag
