KCP2 00-110-185 Control Panel

KCP2 00-110-185 Control Panel

Product Details Introduction

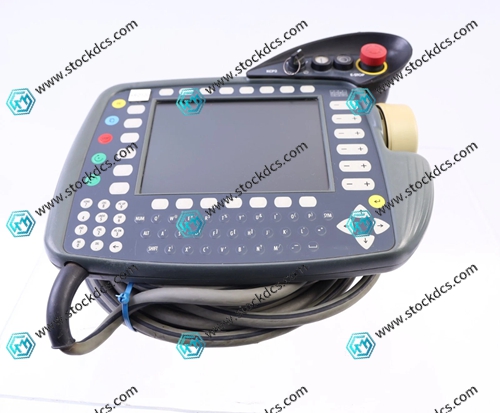

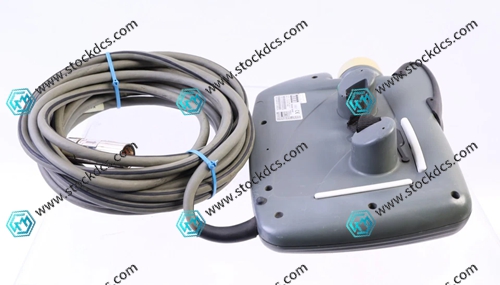

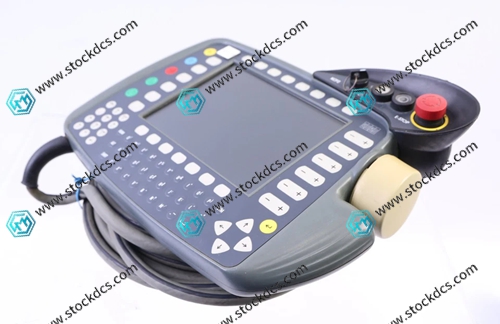

KCP2 00-110-185 (also known as KCP 2.0) is a handheld control panel/teaching pendant designed by KUKA specifically for KRC2 standard control cabinets. It comes standard with a 10 meter wear-resistant and anti torsion special cable and is directly powered through the control cabinet. It is a core human-machine interaction device for industrial field robot programming, manual jogging, status monitoring, and fault diagnosis. It is widely used in automation production lines such as automotive manufacturing, 3C electronics, and general machinery.

Core features of the product

System strong adaptation: specially designed for KRC2 series control cabinets, with stable CAN bus communication, plug and play, no additional configuration required; Not cross generational compatible with KRC4/KRC5 systems.

Industrial grade display: equipped with an 8.4-inch TFT color display screen, clear resolution, supports multiple languages (including Chinese), good visibility under strong light, real-time display of programs, coordinates, and alarm data.

Six dimensional precise control: Integrated 6D joystick (six dimensional mouse), supporting three motion modes: axial motion, linear motion, and repositioning. It can be manually adjusted and step fine tuned to achieve high-precision trajectory teaching.

Triple safety protection: red mushroom head emergency stop button+three-stage enable (Dead Man) switch+mode selection lock, in compliance with EN418, CE mechanical and electrical safety standards.

Full function key layout: membrane numeric keyboard+function shortcut keys+custom programmable keys, durable operation feel, suitable for high-frequency use on the production line.

10 meter standard cable: Standard configuration includes 10 meters of anti bending, anti tensile, and oil resistant cable, covering the operating radius of conventional workstations without the need for additional extension.

Direct power supply for control cabinet: The KRC2 cabinet is powered by 24V DC through connecting cables, without external power supply, making installation and movement more convenient.

IP protection level: The shell meets the industrial IP54 dust and oil protection standard, can withstand workshop oil and dust environments, and is not easily damaged.

Improve program management: Support KRL program creation, editing, saving, copying, importing and exporting, and enable single step running and breakpoint debugging.

Real time diagnostic capability: can view I/O status, shaft load, fault codes, and system logs to quickly locate electrical and mechanical issues.

Ergonomic design: The body weight is moderate, the grip area is non slip, and long-term operation is not easy to fatigue.

Interface Expansion: Reserved Ethernet and USB interfaces for convenient program backup, data archiving, and peripheral connection.

Anti electromagnetic interference: EMC compliant design ensures stable communication and display in strong interference environments such as frequency converters and servos.

Mature industrial certification: Passed CE, UL and other certifications, in compliance with low voltage directives, mechanical safety and electromagnetic compatibility regulations.
