Product Details Introduction

Introduction to GE Fanuc IC697PWR724 Power Supply Series Modules

IC697PWR724 is a DC power module used in the 90-70 series PLC system, mainly used to provide stable multi-channel DC output voltage for the PLC rack. This model is suitable for 24VDC input systems and is a commonly used power supply unit in industrial automation control systems.

1、 Module positioning

Type: PLC rack power module

Series: 90-70 Series

Installation position: Power slot on the leftmost side of the rack

Function: Provide power to the backplane and various functional modules

2、 Electrical parameters

Rated input voltage: 24VDC

Input range: approximately 18-32VDC

Total output power: approximately 90W

Main output voltage:

+5VDC

+12VDC

-12VDC

+5V output current: approximately 18A

+12V output current: approximately 1.5A

-12V output current: approximately 1A

3、 Functional Features

Supports single rack or dual rack power supply

Equipped with overcurrent and overvoltage protection functions

Capable of maintaining short-term power outage capability

Stable output, suitable for continuous operation

Industrial grade structural design

4、 Application Fields

Power automation system

Petrochemical control system

Metallurgical industry control platform

automatic production line

Large scale process control system

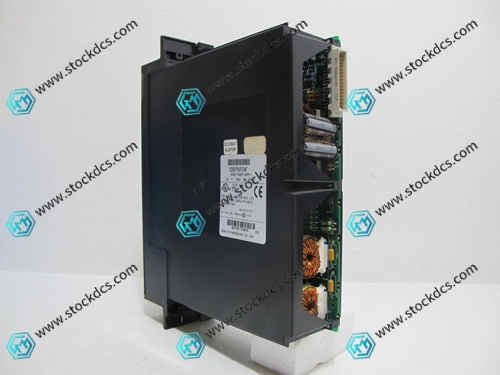

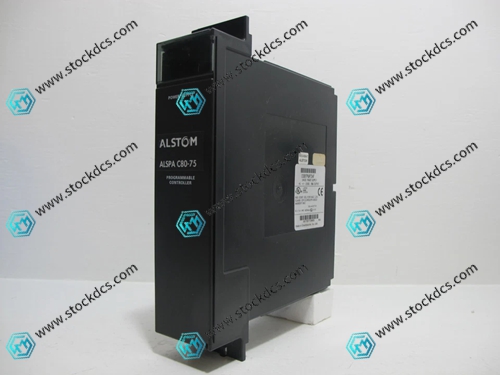

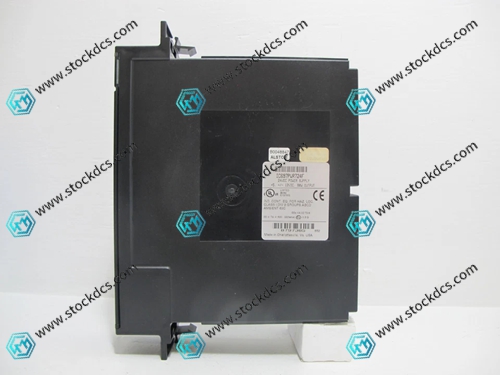

IC697PWR724  Product imag
