Product Details Introduction

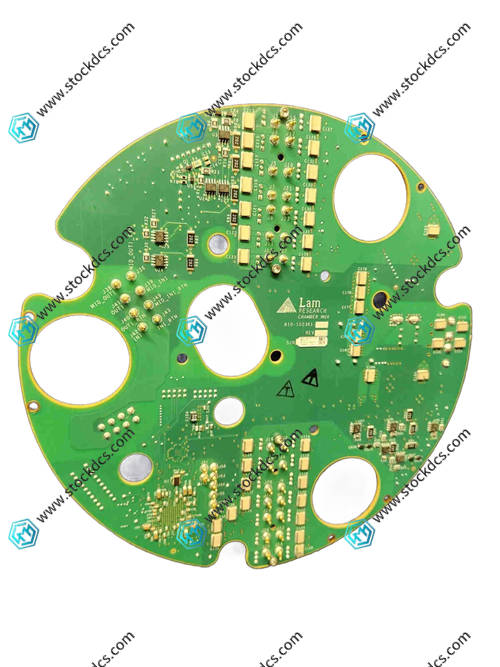

855-132438-001 Circuit Board Product Description

855-132438-001 is an industrial grade general-purpose circuit board, positioned as the core of circuit carrying and signal interconnection for various industrial electronic devices. Through standardized substrate selection and optimized circuit layout, it achieves the functions of fixing electronic components, electrical connection, and signal transmission. It has industrial grade environmental adaptability and structural stability, and is widely applicable to industrial control, automation equipment, instrumentation, and other fields. The core information is as follows:

1、 Core technical characteristics

-High quality substrate and process: using industrial mainstream FR-4 epoxy resin glass fiber substrate, Tg value ≥ 140 ℃, with excellent insulation performance, mechanical strength and heat resistance; Adhere to the IPC-A-600G Class 2 manufacturing standard to ensure product consistency and reliability;

-Precision circuit design: supports multi-layer circuit layout, with a minimum line width/spacing of 0.1mm (4mil), a minimum finished aperture of 0.2mm, and high-precision interconnection capability; Surface treatment options include OSP, lead-free tin spraying, and other methods to adapt to different soldering needs and usage environments;

-Industrial grade electrical performance: adaptable to a wide range of voltage and current parameters, with excellent insulation and voltage resistance performance. The maximum working voltage can be adapted to 2.5kV DC and above (adjusted according to the thickness of the dielectric layer), and can stably carry the signal processing and power distribution tasks of the equipment core circuit;

-Strong environmental adaptability: using materials and processes that are temperature resistant, moisture resistant, and corrosion-resistant, with a working temperature range covering -40 ℃~85 ℃, possessing excellent resistance to electromagnetic interference, and can work stably in complex environments such as dust, vibration, and temperature differences in industrial sites;

-Standardized assembly and adaptation: precise component welding points are reserved, and the precision of aperture and spacing is strictly controlled. It can accurately match the installation requirements of various industrial electronic components such as resistors, capacitors, chips, connectors, etc., ensuring assembly accuracy and connection reliability.

2、 Core application areas

-Industrial automation control: As the core circuit carrier of PLC, servo drive, sensor control module and other equipment, it carries control logic circuits and signal processing circuits, ensuring precise control and stable operation of automation equipment;

-In the field of instrumentation, the circuit system is adapted to various precision measuring instruments and detection instruments to achieve signal acquisition, amplification, processing, and transmission functions, ensuring the measurement accuracy and data reliability of instruments;

-Automated production equipment: used as control units for packaging machines, surface mount machines, conveyor lines, and other automated equipment, responsible for monitoring equipment operating parameters and transmitting instructions to executing mechanisms, improving the automation level of production processes;

-Specialized electronic equipment: It can serve as the core circuit component of specialized products such as medical instruments, industrial testing equipment, and rail transit auxiliary electronic equipment, adapting to the performance requirements of special scenarios and ensuring the safe and stable operation of the equipment.
