0190-62069 Power Supply Module

0190-62069 Power Supply Module

Product Details Introduction

0190-62069 Precautions for using power supply module

Wear an anti-static wristband throughout the module unpacking and installation process to prevent static electricity from damaging the internal power management chip and filtering capacitor.

During installation, align the device backplane slot and smoothly push it in, fasten the fixed buckles on both sides, and strictly prohibit violent insertion and removal that may cause wear or deformation of the golden fingers.

Before wiring, check the terminal identification and strictly distinguish between AC input, DC output, and grounding ports to prevent module burnout caused by incorrect port connections.

The input power supply must comply with the rated voltage range of the module. Before connection, use a multimeter to check the voltage stability and confirm that there is no overvoltage or undervoltage before powering on.

Before connecting the output end to the load, calculate the total power of the load to ensure that it does not exceed the rated output power of the module, and prohibit overloading operation to trigger the protection mechanism.

When wiring, tighten the terminal screws according to the specified torque to avoid loosening and causing poor contact, such as terminal overheating and power interruption.

The operating environment temperature of the module is controlled between -10 ℃~55 ℃, the relative humidity is maintained at 10%~90% without condensation, and it is kept away from high temperature heat sources and corrosive gases.

Ensure that the module's heat dissipation grille is unobstructed by foreign objects, and that the cooling fan operates without any abnormal noise, ensuring timely heat dissipation and preventing module overheating.

When multiple modules are connected in parallel for redundant power supply, it is necessary to strictly follow the manual requirements to connect the current balancing line, ensure balanced current distribution, and avoid single module overload damage.

After powering on, first observe the status of the running indicator light. The indicator light should light up normally without any fault alarm prompts, and then gradually connect the load device.

Do not plug or unplug input or output cables during module operation to prevent transient surge currents from impacting internal circuits and causing component damage.

Regularly check the input and output voltage of the module. If the voltage fluctuation exceeds the allowable range, immediately cut off the power to investigate the cause of the fault and handle it in a timely manner.

When cleaning the surface of the module and the cooling fan, the power should be disconnected first, and a dry soft bristled brush should be used to gently sweep away dust. The use of liquid cleaning agents is prohibited.

When idle for a long time, disconnect all wiring of the module, place it in an anti-static packaging bag, and store it in a dry, ventilated, and dust-proof environment.

Non professional maintenance personnel are strictly prohibited from disassembling the module casing. When a fault occurs, record the status of the indicator light and the fault phenomenon, and contact the manufacturer's after-sales service for handling.

Summary: The use of the 0190-62069 power supply module should focus on anti-static protection, port wiring specifications, and load power matching. Daily maintenance should pay attention to heat dissipation, cleaning, and voltage monitoring to avoid risk operations such as overload operation and live plugging, which can effectively ensure the stability of module power supply and service life.

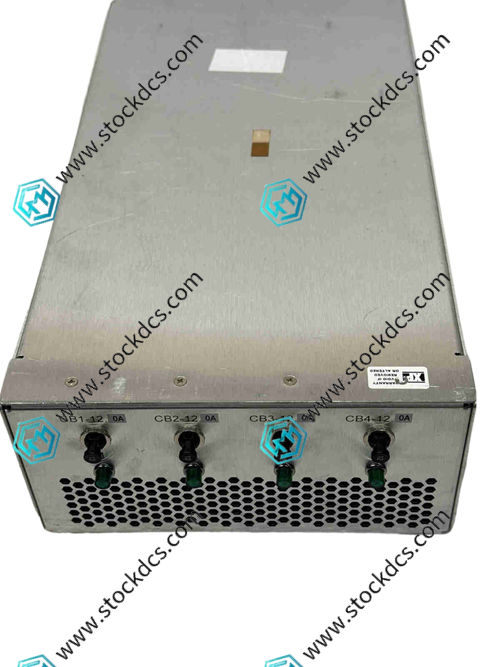

0190-62069 Product imag
