1771-VHSC-B E02 Counter Module

1771-VHSC-B E02 Counter Module

Product Details Introduction

Single channel 1MHz ultra high speed counting capability, 4 channels can be independently configured, easily capturing high-frequency pulse signals.

Compatible with multiple modes such as encoder, counter, and rate measurement, the 1771-VHSC-B E02 is suitable for multi scene detection requirements.

The input of the 2-phase encoder supports a frequency of 250kHz, with X1/X4 harmonics for free selection, and the counting accuracy can be upgraded as needed.

The 8-channel isolated output is divided into 2 independent isolation groups, with a single channel driving current of 2A, which can directly drive small actuators.

Wide range input voltage design (5V/12-24V optional), 1771-VHSC-B E02 is suitable for various sensor signal inputs.

-Extremely wide temperature range of 40~70 ℃, fearless of high and low temperature environments, fully adaptable to industrial scenarios.

Seamless integration with Allen Bradley 1771 series I/O racks, seamless collaboration with PLCs of the same brand, and unobstructed expansion.

1500V high-level input and output isolation, effectively resisting electromagnetic interference, and ensuring accurate and distortion free data transmission.

0-999999 ultra large programmable counting range, 1771-VHSC-B E02 meets the requirements of high numerical counting scenarios.

100 µ s ultra fast module update cycle, real-time response to signal changes, ensuring control closed-loop accuracy.

Supports dual protocols of DeviceNet and Modbus TCP, with flexible networking methods and easy integration with upper control systems.

Compact size of 13.46 × 8.64 × 2.54cm, compact body saves control cabinet space, and the layout is more flexible.

Only 0.45kg lightweight design, combined with DIN rail installation method, saves time and effort in disassembly and maintenance.

Widely used in various industry scenarios such as manufacturing production line counting, chemical equipment monitoring, mining positioning control, etc.

Using high-quality industrial grade components, the original factory provides a one-year warranty, ensuring long-term stable and reliable operation.

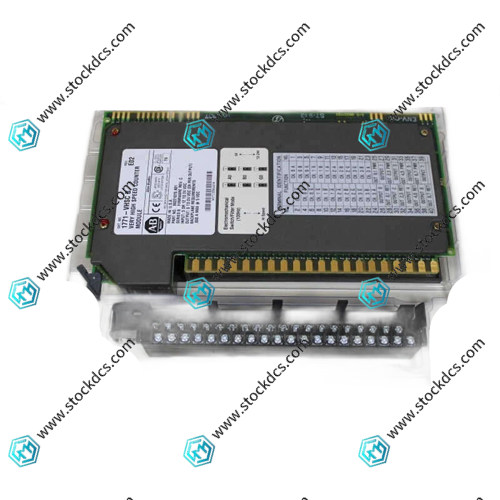

1771-VHSC-B E02 Product imag
