1746-IB32 Controller Module

1746-IB32 Controller Module

Product Details Introduction

1746-IB32 Controller Module Introduction

1746-IB32 is a 32 point digital DC input module of the Rockwell Allen Bradley SLC 500 series, used for collecting industrial field switch signals. The following is a detailed introduction:

Belonging to SLC 500 series standard digital DC input module

The input points are 32 points, adopting high-density design to save rack space

The input voltage specification is 24V DC, suitable for industrial sensors and button signals

Input type is leakage input, compatible with NPN output field devices

Each input channel has an independent LED status indicator light

Adopting group isolation design to enhance anti-interference capability and system security

Support SLC 500 full series standard 1746 rack installation

Data exchange between PLC backplane bus and CPU

Equipped with overcurrent protection and polarity reversal protection functions

Wide working temperature range, suitable for harsh industrial site environments

The wiring method adopts a detachable terminal block, which is convenient for on-site wiring and maintenance

Low backplane power consumption, suitable for multi module dense configuration

Widely used for signal acquisition of buttons, limit switches, proximity switches, etc

This model is still available for supply and is a commonly used input module in SLC systems

Simple programming configuration, directly mapped to PLC input mapping area

In summary, 1746-IB32 is a commonly used high-density digital input module in SLC 500 control systems, which is widely used in signal acquisition scenarios for various automation equipment due to its stability, reliability, easy wiring, and simple maintenance.

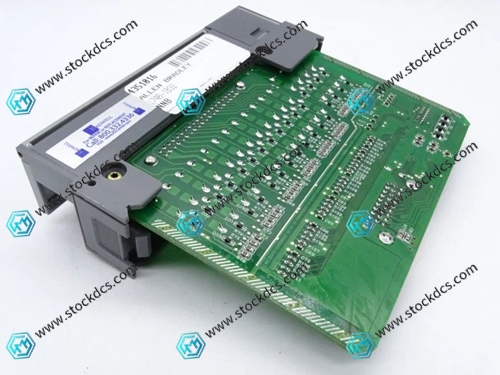

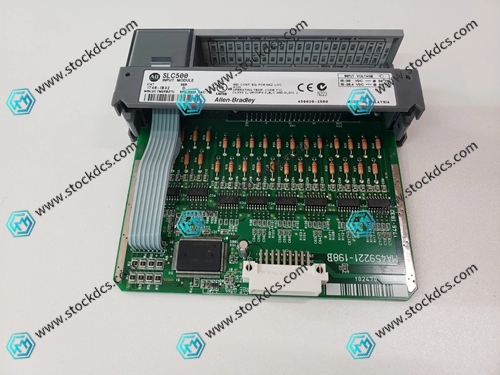

1746-IB32 Product imag

1746-IB32 ontroller Module
