1757-SRM system redundant module

1757-SRM system redundant module

Product Details Introduction

1757-SRM System Redundant Module Product Features

1757-sRM is the core redundant synchronization module of the Rockwell Allen Bradley ControlLogix/ProcessLogix platform, designed to provide uninterrupted operation support for critical industrial control scenarios. Its core features are as follows:

Specially designed for ControlLogix/ProcessLogix controllers to achieve redundant synchronization between master and slave controllers.

Dual slot installation design, compatible with standard ControlLogix chassis.

Adopting SC type fiber optic interface, high-speed synchronization is achieved using 62.5/125 μ m multimode fiber optic.

Support 1757-1RC series dedicated redundant fiber optic cables (1m/3m/10m/50m/100m).

Built in PRI/COM/Health tri color LED displays the master-slave status, communication, and health status intuitively.

Support seamless and disturbance free switching between master and slave controllers to ensure continuous operation of the process.

Real time synchronization of programs, data, and I/O status, switching without data loss.

Maximum power consumption of 11.28W, heat dissipation of 38.49 BTU/hour, industrial grade power consumption design.

Working temperature range of 0-60 ℃, suitable for standard industrial site environment.

Supports Logix 5560 series controllers (5561/5562/5563, etc.).

Redundancy requires exactly the same configuration (module model, version, and slot matching).

Provide module status text codes for quick diagnosis and maintenance.

The weight is about 0.45kg, the structure is compact, and it saves cabinet space.

Support online diagnosis and status monitoring to enhance system maintainability.

Specially designed for critical continuous production scenarios such as petroleum, chemical, and power, with high reliability and availability.

In summary, 1757-sRM, with its core advantages of high-speed fiber optic synchronization, disturbance free switching, status visualization, and industrial grade stability, is a must-have module for achieving high availability redundant control in the ControlLogix system.

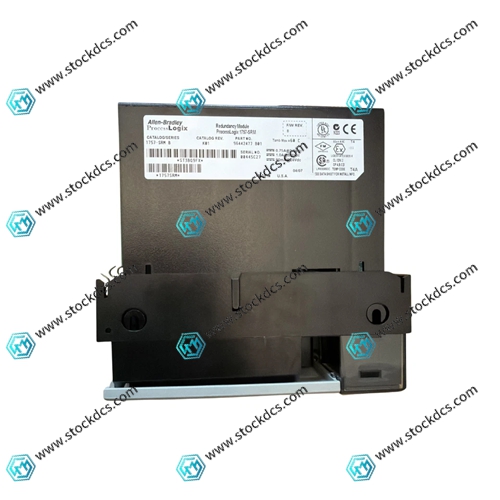

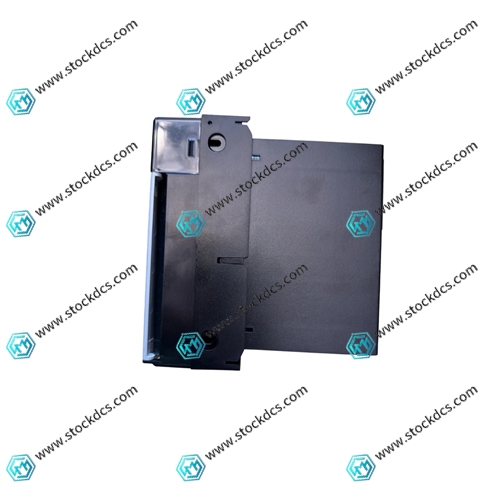

1757-SRM Product imag
