Xycom 9450 Screen Monitor Panel

Xycom 9450 is a classic industrial grade integrated HMI screen monitor panel, adopting a PC/AT compatible architecture, integrating a 14 inch SVGA display and dedicated operation button area, designed for human-machine interaction in harsh industrial sites such as factory workshops, metallurgy, and power. It supports panel/rack installation, outstanding protection and stability.

Core Features

14 inch SVGA color display panel, resolution 1024 × 768, equipped with Lexan impact protection screen, clear and durable display.

The front panel is sealed to NEMA 4/12 (IP65) standard, dust-proof and splash proof, and suitable for industrial environments with oil stains and dust.

Integrate 32 data input keys and 20 function keys, and optionally install a resistive touch screen to meet local fast operation requirements.

Compatible with IBM PC/AT standard motherboard (486/5x86/Pentium optional), 7-slot passive backplane, and supports various industrial board expansion.

Wide range AC power supply (115/230VAC, 50/60Hz, 3.3A), compatible with global industrial power grids, with optional DC power supply solutions.

Standard IDE hard drive and floppy drive, optional flash drive (FLASH) to meet program storage and data backup needs.

Provide RS-232 dual serial port, parallel port, Ethernet, and external printer interfaces for easy connection between PLC and upper system.

Supports industrial grade operating systems such as MS-DOS, compatible with traditional industrial control software and SoftScreen HMI software.

The withdrawable computer module can be quickly disassembled with three knob screws, greatly reducing maintenance downtime.

Wide temperature working range (0 ℃~50 ℃, with some configurations starting from -10 ℃), anti vibration, anti electromagnetic interference, suitable for harsh working conditions.

Supports panel installation or 19 inch rack installation, with flexible installation methods and adaptability to different control room layouts.

Built in diagnostic indicator lights can quickly determine key status such as power, hard drive, and communication.

All metal chassis, with passive heat dissipation as the main feature, to avoid system shutdown caused by fan failure.

Compliant with CE and UL industrial certification standards, with comprehensive overvoltage and overcurrent protection design.

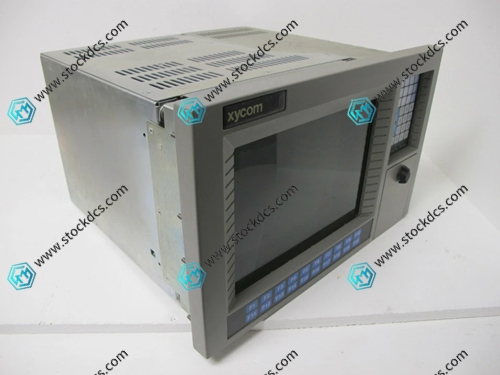

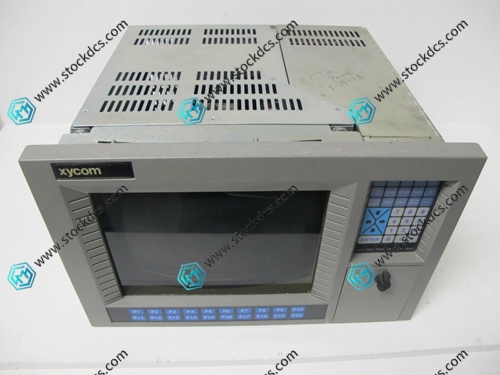

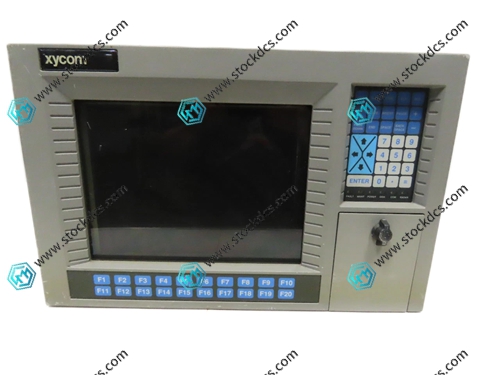

9450  Product imag
