Xycom XVME-601 processor module

Xycom XVME-601 processor module

Product Details Introduction

Xycom XVME-601 processor module product features

Xycom XVME-601 is a single high VMEbus industrial processor module equipped with Motorola 68000/68010 CPUs, designed specifically for industrial real-time control, data acquisition, and embedded systems, balancing compatibility, reliability, and real-time performance.

Adopting Motorola 68000/68010 processors with a main frequency of 10MHz, it meets the real-time control and data processing needs of industry.

Standard VMEbus A24/A16: D16/D08 (EO) bus master device, compatible with mainstream VME control systems, seamlessly integrated.

On board 512KB local DRAM, supports 128KB EPROM expansion, and CPU has zero waiting period to access local storage.

Integrated 68681 DUART, providing 2 RS-232 serial ports and 16 bit programmable timers to meet peripheral communication and timing control needs.

Built in complete VME bus management functions: SYSCLK, SYSRESET, single-stage arbiter, bus timer, IACK daisy chain driver.

Supports level 7 hardware interrupts (IRQ0-IRQ7), which can flexibly respond to external events and ensure system real-time performance.

There are three status LEDs on the front panel, which display diagnostic results and CPU running/shutdown status in real-time for easy on-site debugging.

Industrial grade wide temperature design (-40 ℃~+85 ℃), suitable for harsh industrial environments, long-term stable operation.

Single height 6U VME board structure, compact size, supports high-density rack deployment, easy installation and maintenance.

Built in hardware watchdog that automatically resets in case of abnormalities, enhancing system reliability and fault recovery capabilities.

Support local monitoring programs, provide basic diagnostics, memory read/write, and boot configuration, simplify development and debugging.

Compatible with VMEbus standard power supply, low-power design, suitable for industrial scenarios with long-term continuous operation.

Provide a complete development toolchain and documentation support for secondary development and system customization.

Suitable for industrial automation, process control, data acquisition, testing and measurement, military electronics and other fields.

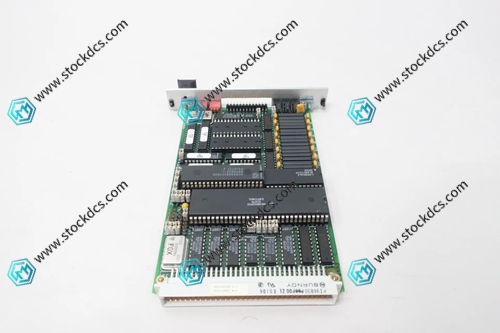

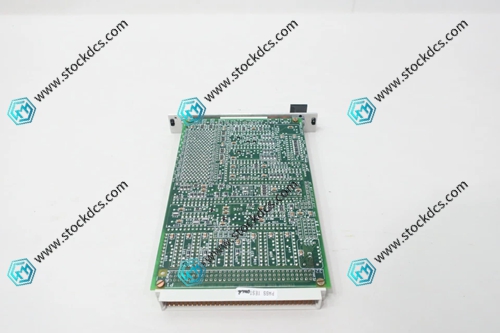

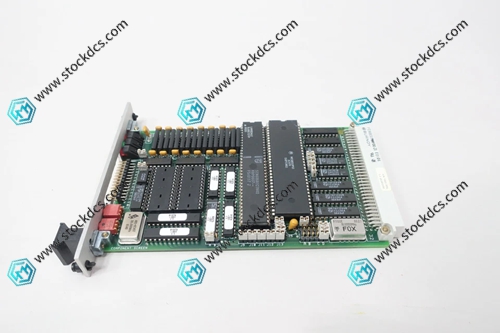

XVME-601 Product imag
