HIMA F4110A Fault Protection Module

HIMA F4110A Fault Protection Module

Product Details Introduction

HIMA F4110A is the core fault protection module of the HIMMATRIX series safety control system, used for monitoring, protecting, and fault safety control of critical signals in the system. It can be forcibly switched to a preset safety state in the event of power supply abnormalities, communication interruptions, or internal faults, ensuring the continuity and reliability of safety instrumented systems (SIS) and emergency shutdown systems (ESD) in industries such as petrochemicals, oil and gas, and power, meeting the requirements of high safety level scenarios.

15 core characteristics

Fault safety design: In the event of power loss, communication failure, or internal abnormalities, it automatically switches to a safe default state (such as cutting off hazardous outputs) to eliminate safety risks;

SIL 3 safety certification: compliant with IEC 61508/61511 standards, certified by T Ü V, supporting AK6 high safety level applications;

24VDC standard power supply: Input voltage range 18-28VDC, compatible with system redundant power architecture, suitable for conventional power supply in industrial sites;

Multi channel signal monitoring: supports real-time acquisition and monitoring of multiple key signals, and can configure different protection thresholds and response logic;

Comprehensive self diagnosis: Real time monitoring of module power supply, communication, signal links, and internal component status, with faults quickly reported through LED and system bus;

Electrical isolation protection: Independent electrical isolation between channels and backboards, signals and power supplies, effectively suppressing electromagnetic interference and surges, and enhancing anti-interference capabilities;

Redundant architecture compatibility: supports system level redundant configuration, works with F3 series controllers to achieve disturbance free switching, and enhances system fault tolerance;

Hot swappable design: supports online live module replacement without downtime, significantly reducing the impact of maintenance on production;

Wide temperature stable operation: working temperature -20 ° C to+60 ° C, storage temperature -40 ° C to+85 ° C, suitable for extreme industrial environments;

Industrial EMC compliance: With high anti-interference performance, it can work stably in complex sites with high voltage, high frequency, and high dust;

Standard DIN rail installation: modular size, plug-in wiring terminals, convenient for control cabinet integration and on-site wiring debugging;

Low power optimization: Industrial grade components and efficient power management reduce heat generation and extend the long-term operating life of modules;

SafeEthernet high-speed communication: seamless integration with F3 series controllers, low data transmission delay, ensuring fast response to protection instructions;

ATEX explosion-proof certification: meets the requirements of Zone 2 applications in hazardous areas and is suitable for explosion-proof scenarios such as oil and gas, chemical, etc;

Long lifespan and high reliability: Made in Germany, with strict production testing processes and a long mean time between failures (MTBF), suitable for continuous safe operation.

Application scenarios

Suitable for fault protection and safety control of critical circuits such as Safety Instrumented Systems (SIS), Emergency Shutdown Systems (ESD), valve interlocks, and Burner Management Systems (BMS). It can quickly respond to system abnormalities and switch to a safe state, ensuring production safety and stable equipment operation.

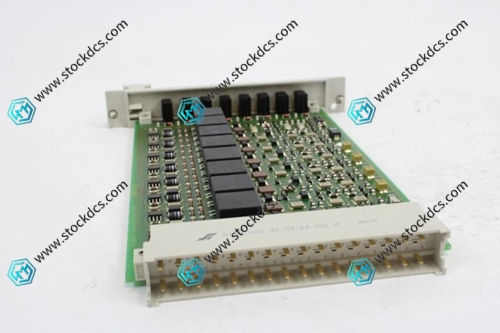

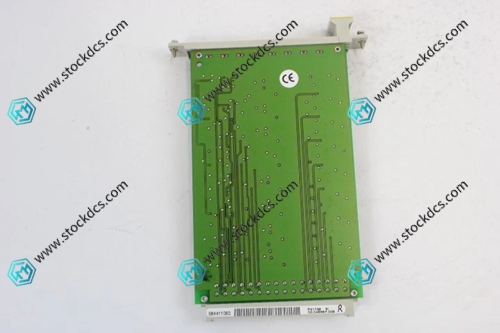

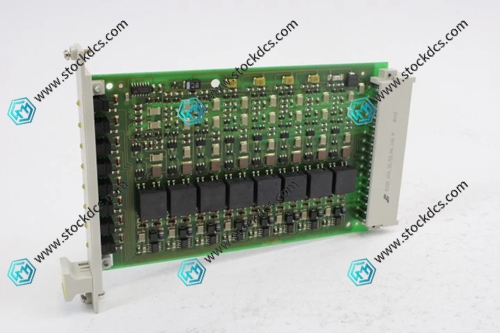

F4110A Product imag
