MVI46-AFC serial communication module

MVI46-AFC serial communication module

Product Details Introduction

MVI46-AFC serial communication module

MVI46-AFC is a serial flow calculation and communication module designed by ProSoft specifically for Rockwell SLC series PLCs. It integrates high-precision flow calculation and Modbus serial communication, and is suitable for fluid measurement and remote control scenarios such as oil and gas, chemical, and energy. It enables rapid on-site data acquisition, standardized calculation, and remote transmission.

Core Features

Single slot compatible SLC rack, plug and play, efficient installation and debugging

Dual independent RS-232/RS-485 serial ports, supporting Modbus RTU/ASCII protocol

Ports can be independently configured as master/slave stations, allowing for flexible integration with instruments, RTUs, and SCADA master stations

Built in high-capacity Modbus database, supporting 130000 register mappings

Support virtual slave address remapping to achieve continuous address batch polling

Can receive PLC analog/pulse input data through the backplane, supporting 4-20mA format

Perform gas/liquid flow compliance calculations, output flow rate, cumulative measurement, quality, and other results

The calculation results are transmitted back to the PLC for ladder logic control or uploaded to the upper system

Supporting AFC Manager software to achieve instrument configuration, parameter monitoring, and data diagnosis

Industrial grade anti-interference design, wide temperature operation, suitable for outdoor and industrial site environments

Support Modbus gateway function to achieve transparent data exchange between PLC and external devices

Independent communication processing, does not occupy PLC main computing resources, ensures system real-time performance

Support event triggered data upload, adapt to scenarios such as sudden traffic changes and alarms for reporting

Seamless integration with RSLogix 500, accessing module data through standard instructions

The power supply is compatible with 100-240VAC/24VDC and can adapt to various on-site power supply conditions

Typical Applications

Oil and Gas Field and Pipeline Network: Remote Transmission of Crude Oil and Natural Gas Flow Measurement and Trade Settlement

Refining and chemical equipment: process medium flow calculation, energy consumption monitoring, and data reporting

Urban Gas and CNG/LNG Stations: Serial Transmission and Remote Management of Gas Metering Data

Thermoelectric/Boiler System: Steam and Hot Water Flow Calculation and Modbus Bus Networking

Petrochemical Warehousing and Energy Measurement: Collection and Traceability of Storage Tank, Loading/Shipping Flow Data

Water Treatment and Environmental Protection Engineering: Monitoring and Remote Communication of Sewage and Purified Water Flow

Industrial energy management: Multi media flow data summary uploaded to SCADA/EMS system

This module completes high-precision flow calculation and standardized data transmission through serial links, efficiently connecting SLC PLC with field instruments and remote control systems, meeting the core requirements of industrial automation measurement and remote monitoring.

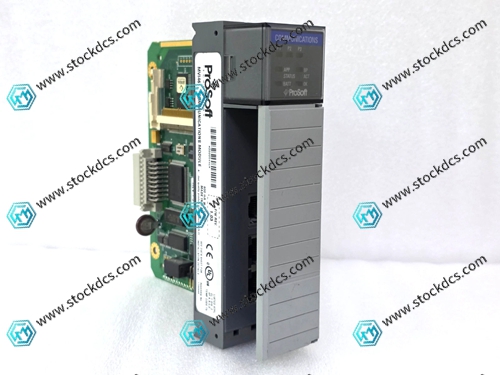

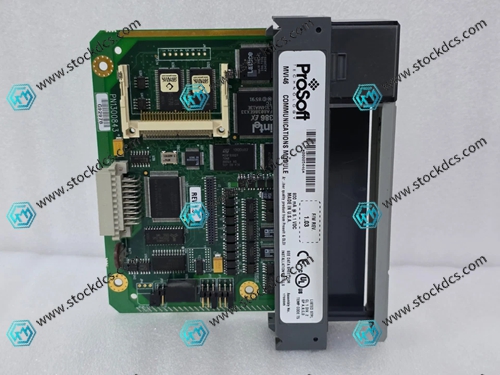

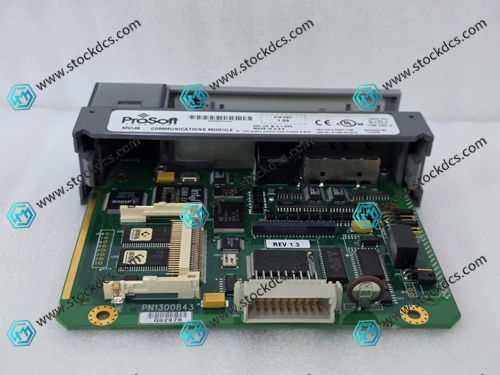

MVI46-AFC Product imag

MVI46-AFC  ontroller Module

YPQ110A 3ASD573001A5 Automation Control Module
216AB61 HESG324013R0100 HESG435572P1 regulator module
216DB61 HESG324063R0100 HESG216882A controller unit
