IS230PCAAH1B Composite Core Analysis Module

IS230PCAAH1B Composite Core Analysis Module

Product Details Introduction

The GE Mark VIe system specific core analog combination module, also known as Assembly Core Analog, provides high-precision analog signal acquisition, processing, and output for gas turbine/steam turbine control. It is the key I/O core of the Speedtronic control architecture.

Belonging to the GE Mark VIe/VIeS control system, it is the core analog processing unit, suitable for gas turbine, steam turbine, and compressor control scenarios.

Integrated with multiple types of analog signal interfaces, supporting thermocouple, 4-20 mA current, ± 5V/± 10V voltage, and seismic signal input.

Built in LVDT excitation and acquisition circuit, can be directly connected to linear variable differential transformer for displacement and position measurement.

Equipped with a pulse rate input channel, it can process speed and frequency pulse signals to meet the requirements of turbine speed monitoring.

Configure servo coil output for precise servo control of actuators, suitable for regulating turbine valves and actuators.

Relying on redundant IONet Ethernet to communicate with the higher-level controller, data transmission is stable, supporting dual network hot backup, and improving system availability.

It needs to be used in conjunction with the TCAS/TCAT core simulation terminal board to achieve signal physical access and channel level redundancy configuration.

Channel level high-precision acquisition, combined with software filtering and calibration, ensures measurement accuracy and consistency in harsh industrial environments.

Complete self diagnostic function, supporting channel short circuit, open circuit, and power abnormal detection, and fault information can be uploaded to the ControlST software.

The panel is equipped with channel status LED indicator lights, which can quickly determine the working status of the channel locally and facilitate fault location.

Supporting system redundancy design, when paired with dual channel terminal boards, can achieve I/O channel redundancy and meet critical control safety requirements.

Industrial grade wide temperature design, with a working temperature range of -30 ° C to+65 ° C, capable of withstanding high temperatures, vibrations, and electromagnetic interference.

Modular structure, plug-in installation, can be quickly replaced in designated slots of the I/O Pack rack, and maintenance is convenient.

Compatible with ControlST software, requires BPPC I/O Upgrade V05.01.03 patch to support system configuration, calibration, and diagnostics.

Through industrial safety and EMC certification, it is suitable for industrial sites with strong interference and high reliability requirements such as power plants and energy stations.

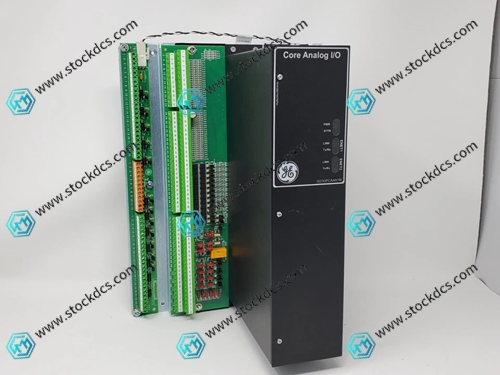

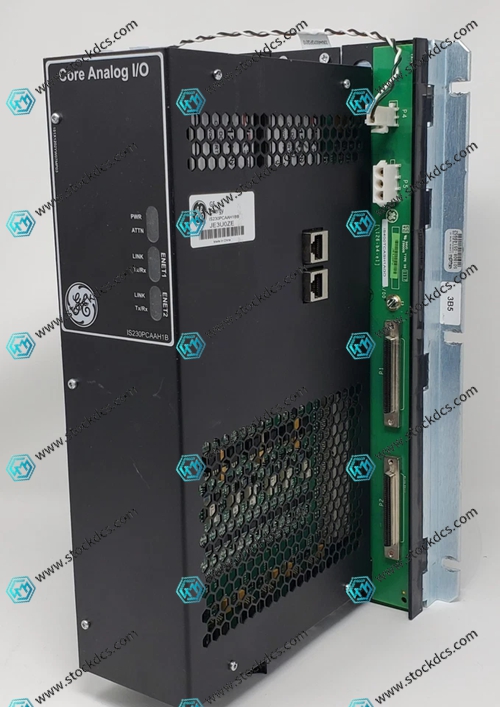

IS230PCAAH1B  Product imag
