KJ3201X1-EA1 redundant discrete module

Product Overview

KJ3201X1-EA1 is a redundant discrete input/output module used in industrial automation control systems to process discrete (switch) signals and has redundant design to improve system reliability.

core functionality

Receive and/or output discrete (digital) switch signals

Support system redundancy configuration to improve operational reliability

Used for implementing switch status acquisition, device start stop control, alarm output, etc

Collaborate with the logic control module of the control system

Performance Characteristics

Redundant design: supports dual channel or dual module backup to improve fault tolerance capability

Strong industrial grade anti-interference performance: suitable for complex on-site environments

Channel isolation structure: reduces signal interference and fault propagation

Modular structure: easy to install, maintain, and expand

Typical use

Receive switch input signals from on-site equipment (such as limit switches, buttons)

Output switch control signals to on-site actuators (such as relays, contactors)

Realize discrete control of equipment start stop, fault indication, interlocking logic, etc

Provide redundancy assurance in systems that require high reliability

Installation and Usage

The module is installed on the I/O rack or backplane of the control system

After configuring the system engineering parameters, the controller can recognize and use the module

The redundant function needs to be enabled in the system configuration and paired with another redundant unit for use

This module does not contain independent control logic and is only responsible for the transmission and reception of discrete signals

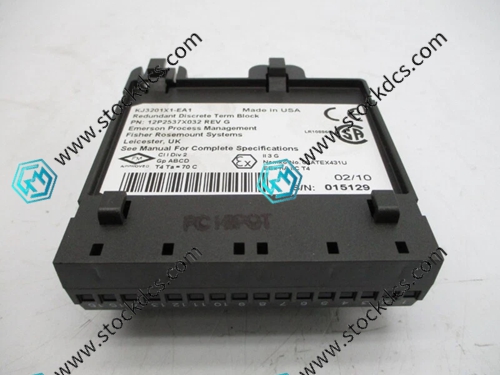

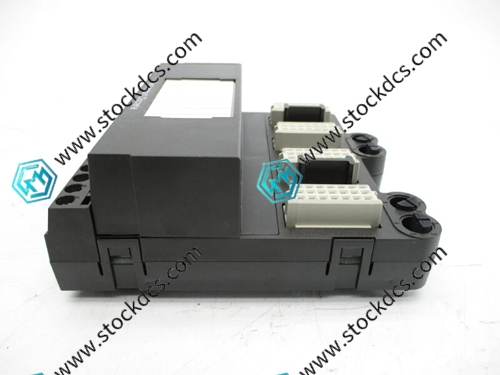

KJ3201X1-EA1 Product imag
