FBM242-P0916JY External Switch Module

FBM242-P0916JY External Switch Module

Product Details Introduction

FBM242-P0916JY External Switch Module Application Fields

The FBM242-P0916JY external switch module is a specialized discrete input module for Foxboro I/A Series DCS systems, with 16 channel dry contact signal acquisition and full channel electrical isolation functions. It supports wide temperature operation from -40 ℃ to+85 ℃ and IP67 protection level. It can accurately receive on-site sensor signals and transmit them to the control system, adapting to the discrete control and status monitoring needs in harsh industrial environments. The specific applications are as follows:

1. Petrochemical tank area: Collect tank level switch and emergency shut-off valve status signals, link safety interlock system to ensure storage and transportation safety.

2. Thermal power generation turbine room: Monitor valve opening limit switches, bearing vibration sensor signals, provide real-time feedback on equipment operating status, and support fault warning.

3. Automotive welding production line: receiving fixture positioning switches and welding gun positioning signals, linking and controlling the welding process to ensure precise connection between workstations.

4. Urban water supply and drainage pump station: Collect the start stop status and check valve switch signals of the pump, upload them to the control platform, and achieve automated operation and maintenance of the pump station.

5. Metallurgical blast furnace feeding system: Monitor the level switch of the silo and the signal of the belt deviation sensor, regulate the feeding rhythm, and prevent the risk of material overflow.

6. Pharmaceutical cleanroom: Receive signals from door and window sealing switches and differential pressure sensors, in compliance with GMP standards, to ensure the cleanliness and sealing of the workshop.

7. Natural gas processing plant: Collect filter differential pressure switch and safety valve status signals, provide real-time feedback on equipment operating conditions, and support process optimization.

8. Intelligent warehouse sorting line: receives goods arrival switch, sorting mechanism limit signal, links AGV scheduling, and realizes automated sorting flow.

9. Cement plant clinker warehouse: Monitor the start stop switch of the dust collector on the top of the warehouse and the level alarm switch signal to ensure stable storage and transportation of clinker.

10. Sewage treatment grid room: Collect the operating status of the grid machine, overload protection switch signals, automatically adjust the cleaning rhythm, and prevent equipment damage.

11. Semiconductor wafer fab: Receive positioning switches and vacuum detection signals from lithography machine workstations, accurately feedback equipment operating status, and ensure process stability.

12. Underground transportation system in mines: Monitor the status signals of the mine car's in place switch and track switch, adapt to high dust environments, and ensure transportation safety.

13. Food processing and packaging workshop: Collect signals from packaging film tension switches and finished product detection switches, regulate packaging processes, and ensure product qualification rates.

14. Rail Transit Vehicle Depot: Monitor train braking status switches and door limit signals, upload them to the dispatch system, and support vehicle operation and maintenance control.

15. Photovoltaic power station inverter room: Collect the start stop status of the inverter and the operation switch signal of the cooling fan, monitor the equipment working conditions in real time, and ensure stable power generation.

Note: The core advantages of the product are high protection level, full channel isolation, and wide temperature adaptability. It is compatible with Foxboro I/A series DCS, supports online diagnosis, and is suitable for various industrial discrete control and status monitoring scenarios.

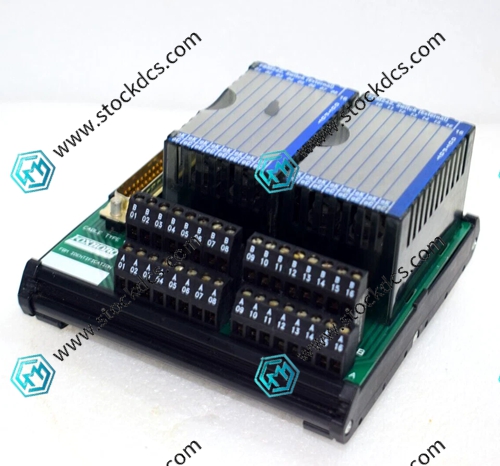

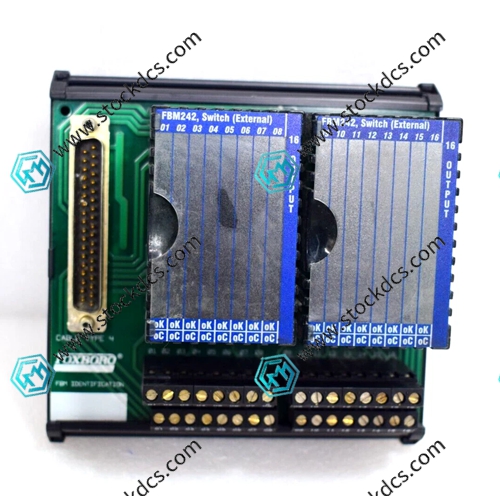

FBM242-P0916JY Product imag
