6151NB10700 interface chassis module

6151NB10700 interface chassis module

Product Details Introduction

6151NB10700 Interface Chassis Module Product Features

As an industrial grade interface chassis module, 6151NB10700 is designed for interface expansion and signal transmission in complex industrial control scenarios, with compatibility, stability, and expandability. Its core features are as follows:

1、 Wide domain compatibility, compatible with mainstream industrial control architectures

Compatible with Intel Q670E chipset and 12th generation Core processors, it can seamlessly integrate into mainstream industrial automation architectures and has strong adaptability.

2、 Multi interface integration to meet diverse transmission needs

Integrate gigabit Ethernet ports, multi specification USB and serial ports, providing one-stop coverage for network communication, peripheral connection, and serial signal transmission requirements.

3、 High speed expansion capability, supporting performance upgrades

Equipped with PCIe GEN5 slot and M.2 interface, it supports graphics card, network card, and wireless module expansion, helping to upgrade performance.

4、 Compact structure, saving installation space

Industrial grade compact design, compatible with DIN rail installation, saves control cabinet space, and can be flexibly deployed in space limited scenarios.

5、 Industrial grade protection, able to withstand harsh working conditions

Capable of dust prevention and electromagnetic interference resistance, able to adapt to temperature and humidity fluctuations, and withstand complex industrial working conditions.

6、 Stable power supply adaptation, ensuring continuous operation

Supports 24V DC industrial power supply, with anti loosening interfaces that can withstand small voltage fluctuations, ensuring continuous and stable operation of equipment.

7、 Support hot swapping function for more efficient maintenance

Key modules support hot plugging (with corresponding configuration), which can be maintained without downtime, improving operation and maintenance efficiency.

8、 High bandwidth data transmission, low latency and no lag

USB 3.2 GEN2 has a speed of 10Gbps and is supported by gigabit Ethernet ports, achieving high bandwidth, low latency, and packet loss free transmission.

9、 Modular design, easy disassembly and maintenance

Modular split design, independent layout of interfaces and slots, convenient disassembly, troubleshooting, and replacement of accessories.

10、 Compatible with multiple display outputs and suitable for visual scenes

Supports VGA, HDMI, and DP multi display output, suitable for industrial visual monitoring and real-time data display on multiple screens.

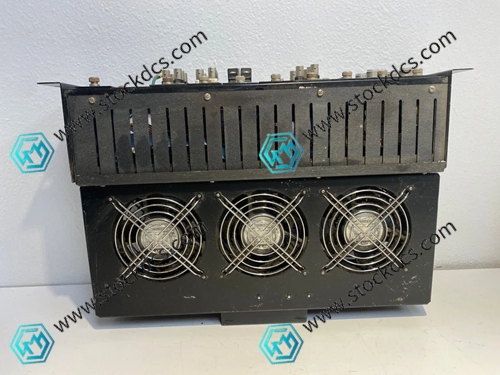

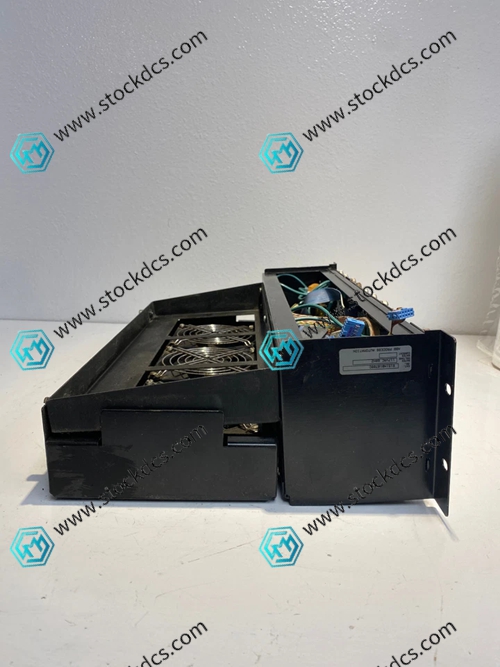

6151NB10700 Product imag
