AFP87432 Input/Output Terminal Board

AFP87432 Input/Output Terminal Board

Product Details Introduction

AFP87432 input/output terminal board is an expansion module for PLC systems, mainly used for signal interaction between PLC and field devices such as switches, sensors, relays, indicator lights, etc.

Main functions

Input signal reception

Connect on-site digital signals, such as the on/off values of buttons, limit switches, or sensors.

The common input voltage is DC 24V.

Output signal control

Output control signals to external devices and control loads such as lights and relay coils through relay switches.

Each output can generally carry a load of about 2A.

terminal connection

Using screw type terminals for easy on-site wiring and maintenance.

Function in PLC system

Expand the input and output points of the PLC main controller.

PLC communicates with the terminal board through the bus to read input signals and control output signals.

Enable PLC to easily connect with on-site equipment and build a complete control system.

Typical specifications

Input points: 16 points

Output points: 8 relay outputs

Input voltage: DC 24V

Output load capacity: approximately 2A

Connection method: screw terminal

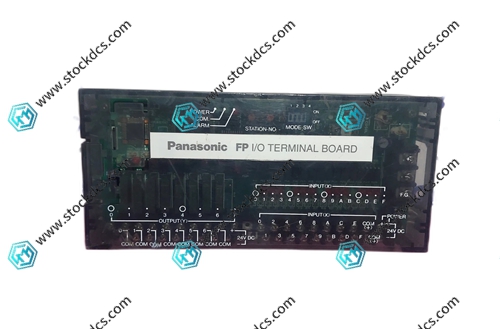

AFP87432 Product imag
