TBXDSS16C22 Input/Output Module

TBXDSS16C22 Input/Output Module

Product Details Introduction

Telemecanique TBXDSS16C22 is a distributed I/O module from the Modicon Premium series under Schneider Electric in France, designed specifically for industrial automation signal acquisition and execution control scenarios.

Equipped with 16 channels of 24VDC solid-state digital output, using source output type, high level effective, can directly drive field actuators such as relays and solenoid valves.

Suitable for 24VDC standard industrial logic power supply, with reasonable power consumption control, compatible with mainstream automation system power supply architecture, and no need for additional power supply modification.

Support seamless integration with Schneider Sy/max and Telemecanique series PLCs, achieve data exchange through dedicated communication interface modules, and have strong system compatibility.

The protection level reaches IP20, suitable for installation inside control cabinets, and can effectively protect solid foreign objects larger than 12.5mm, ensuring the safety of industrial site use.

Each output channel is equipped with short-circuit protection and status indication function, which can quickly locate the problematic channel in case of a fault, reducing the difficulty of troubleshooting.

Adopting a detachable terminal block design, the wiring operation is convenient, and there is no need to disassemble the module as a whole for later maintenance or line adjustment.

Telemecanique TBXDSS16C22 has a working temperature range of 0 ℃~60 ℃, can withstand 5% -95% non condensing humidity, and is suitable for most industrial plant environments.

Support TBXCBS010 expansion interface, which can expand the second TBX series basic module at low cost and flexibly expand the I/O points to meet complex system requirements.

The module weighs only about 0.6kg and has a compact structure. It is installed using standard DIN rails, saving installation space inside the control cabinet.

Compatible with industrial control networks such as FIPio and IO net, it can achieve remote data transmission with the upper computer through a "top hat" communication interface.

Complies with the IEC 1131 industrial standard, supports multiple programming methods such as ladder diagrams and functional blocks, and adapts to different engineer operating habits.

Built in optoelectronic coupling isolation design, strong electromagnetic interference resistance, ensuring signal transmission stability, and adapting to complex industrial electromagnetic environments.

The storage temperature range is -25 ℃~85 ℃, with strong adaptability to transportation and storage, without the need for special temperature control conditions, reducing logistics and storage costs.

Widely used in automated production lines, discrete control equipment, remote I/O sites, and other scenarios, especially suitable for industrial systems that require distributed signal execution.

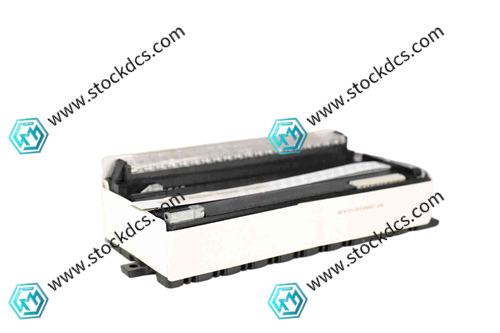

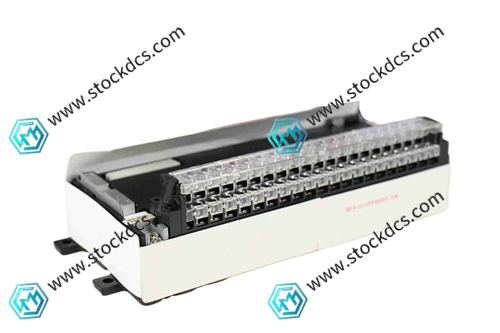

TBXDSS16C22  Product imag
